Corrugadora / Onduladora
Complete Bhs / Agnati Corrugator, Rhdpg, Flutes B, C, E, Format 2500Mm / 98”
U77000526
EUROPA ·
2016
Descripción

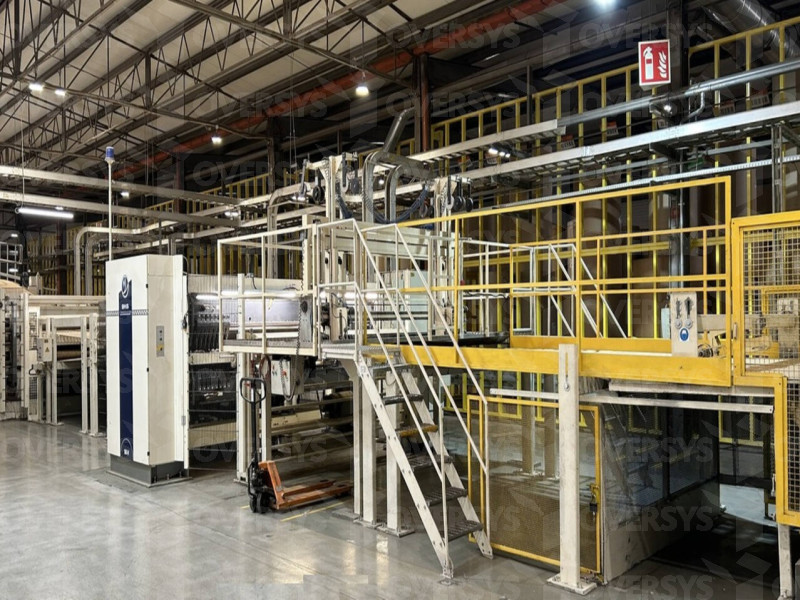

We present this COMPLETE BHS / AGNATI CORRUGATOR, RHDPG, FLUTES B, C, E, working width 2500mm / 98.4", with units manufactured between 1983 and 2022, upgraded in 2021.
The machine is in very good condition, installed in production in a high productive plant with a strict maintenance program and will be available in October 2026.
Machine configuration:
WET END

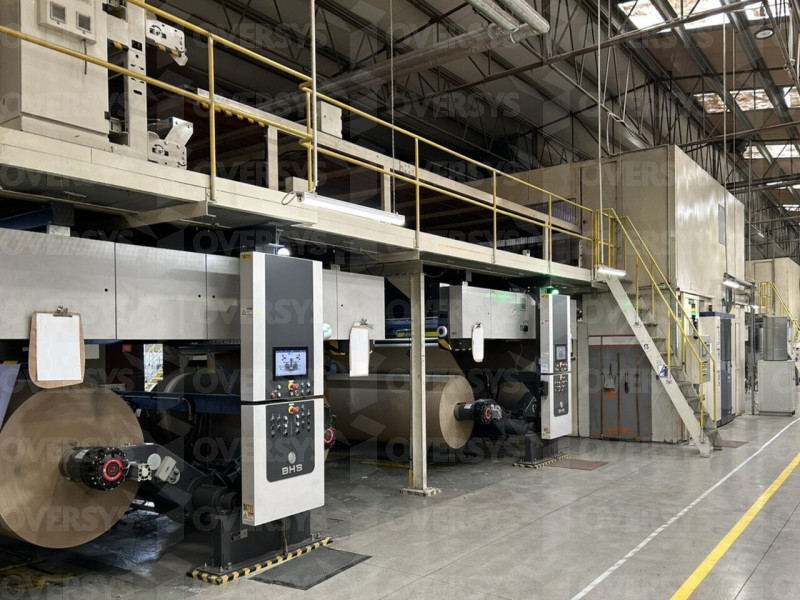

- 5 ROLLSTANDS
- 2 x PETERS 117 - 1983
- 3 x BHS RS-M - 2022
- 5 SPLICERS
- 2 x FUMA BA300 - 2015
- 3 x BHS SPS - 2022
- SINGLE FACER BHS AF-P - 2013
- Flutes: B & C
- Max. speed: 300 m/min
- SINGLE FACER BHS AF-P - 2016
- Flutes: B & E
- Max. speed: 350 m/min
- BHS WEBTROL WEB GUIDE - 2018
- BHS BB WEB BRAKE - 2018
- BHS PH-M/3 MULTIPLE PREHEATER - 2018

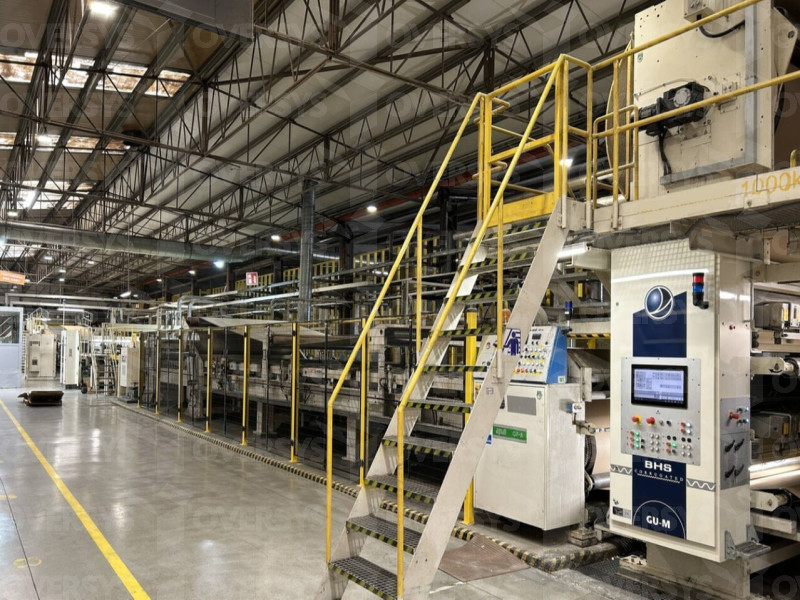

- BHS GU-M/2 GLUE UNIT - 2018

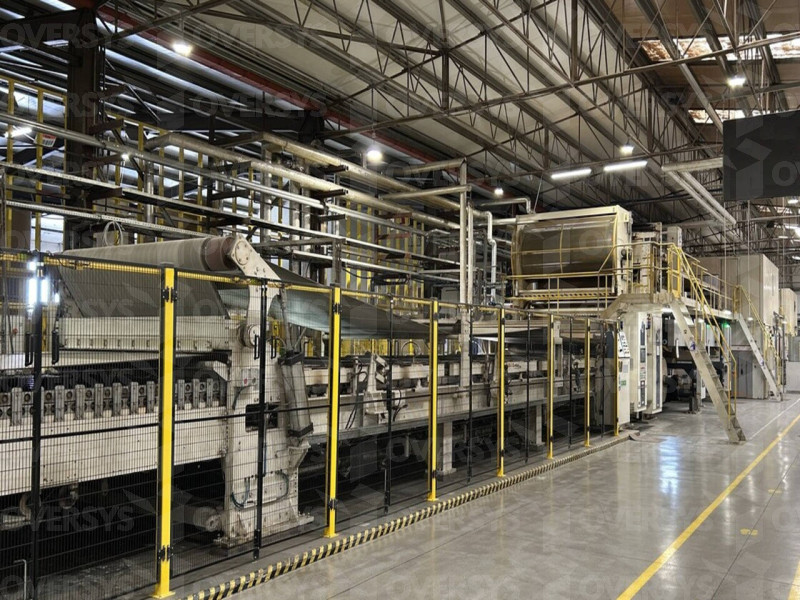

- AGNATI GPA 3+1 DOUBLE BACKER - 1998
- Brico Belt
- 3 steam sections / 3 shoes sections

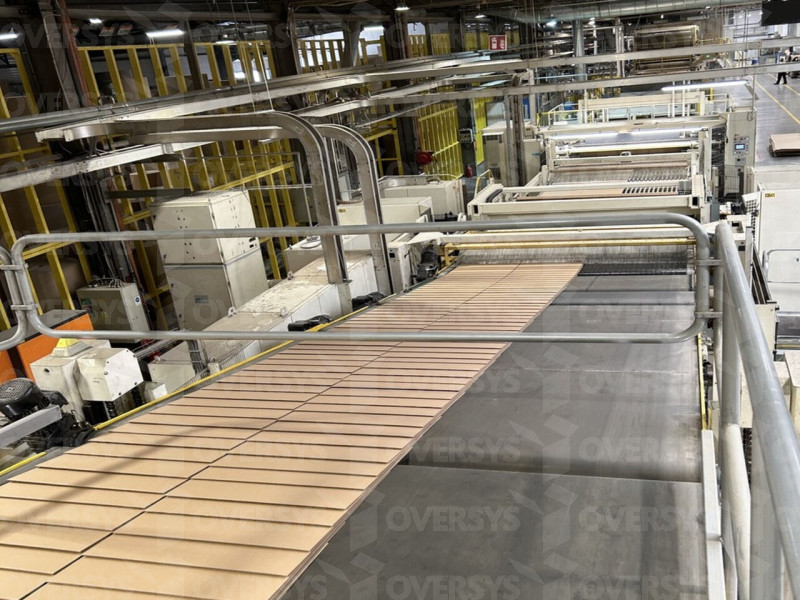

DRY END
- BHS KQM ROTARY SHEAR - 1994 / 2008
- TEAR TAPE APPLICATOR - max. 4 tapes
- BHS SR-V SLITTER SCORER - 2016
- 6 outs
- disc cut
- BHS PM-S 2016 CUT TO MARK SYSTEM
- BHS HQ-M CUT OFF - 2016

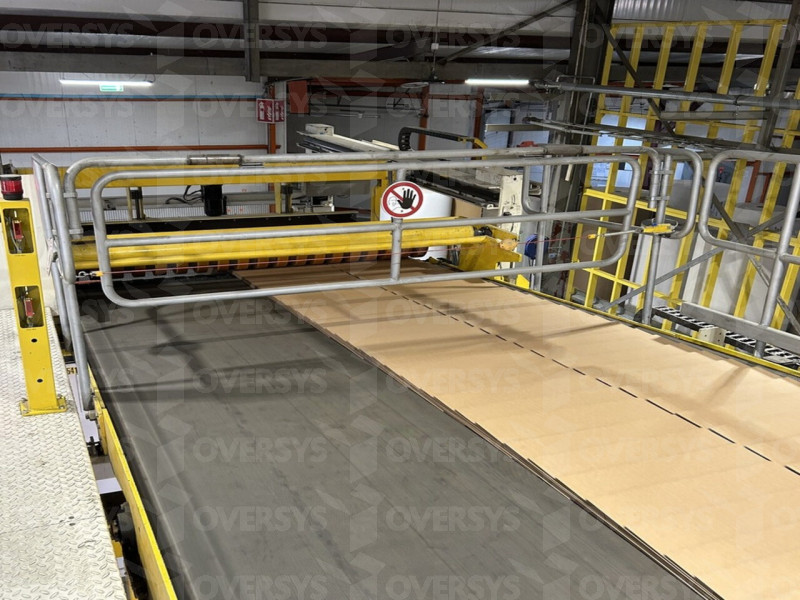

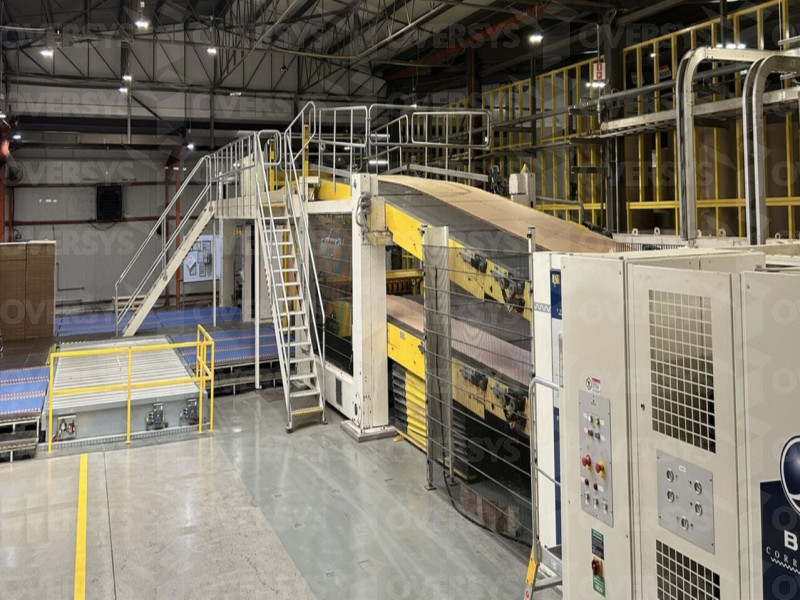

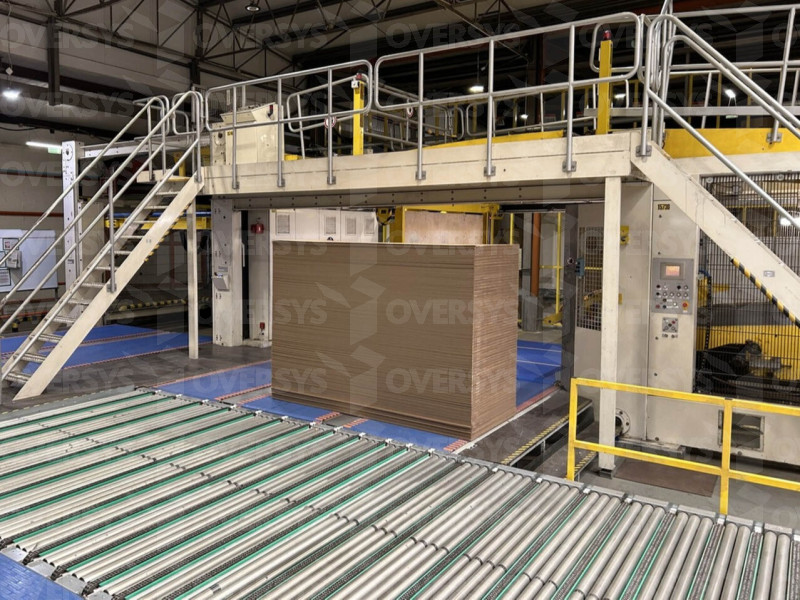

- BHS AS-M STACKER - 2004
- Bottom Stacker: 3500mm / 137.8"
- Upper Stacker: 3500mm / 137.8"

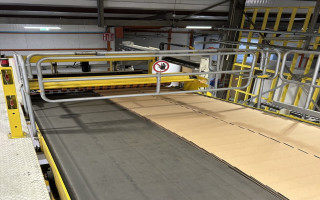

- DUCKER BLUE BELT TAKE OFF CONVEYORS - 2013 / 2022
SERVICE EQUIPMENT - AVAILABLE AT ADDITIONAL PRICE

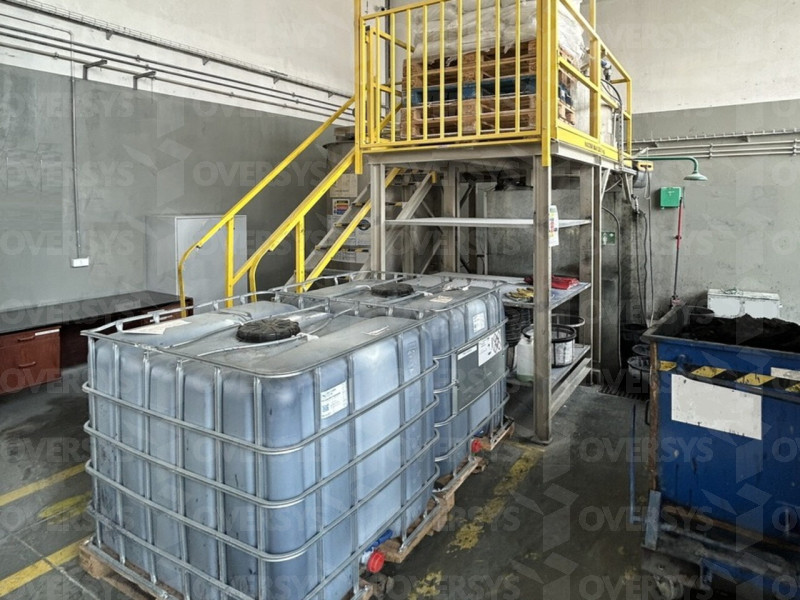

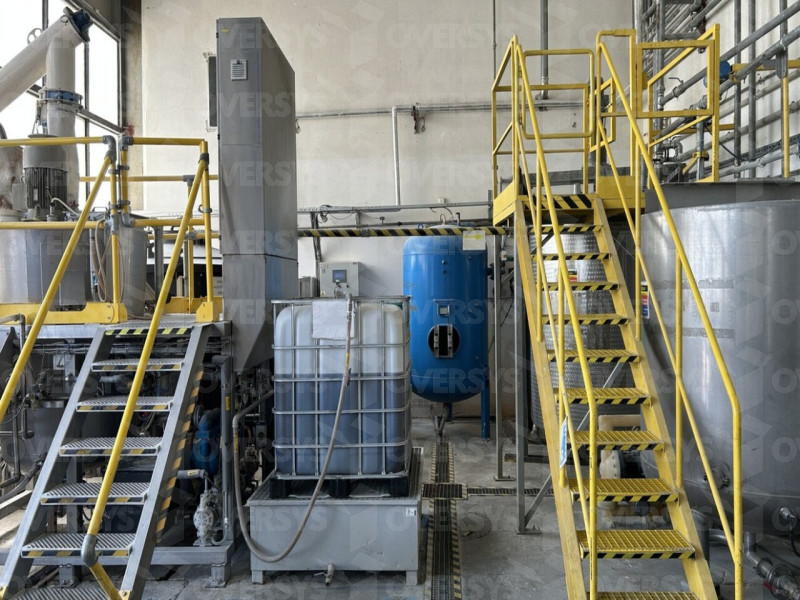

- STARCH KITCHEN SRP GK1200-FA with Liquid Borax - 2015
- Stein Hall Mixing Method
- Silo capacity: 80m3

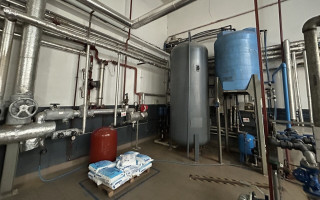

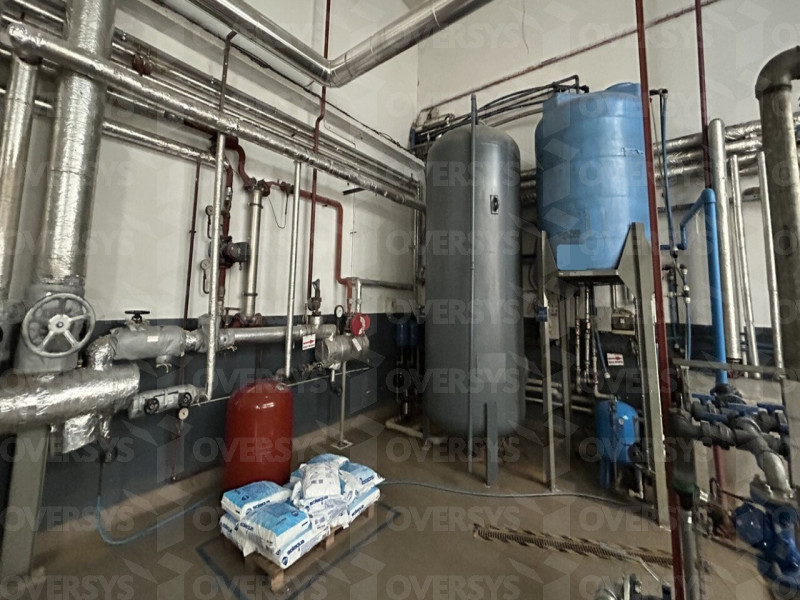

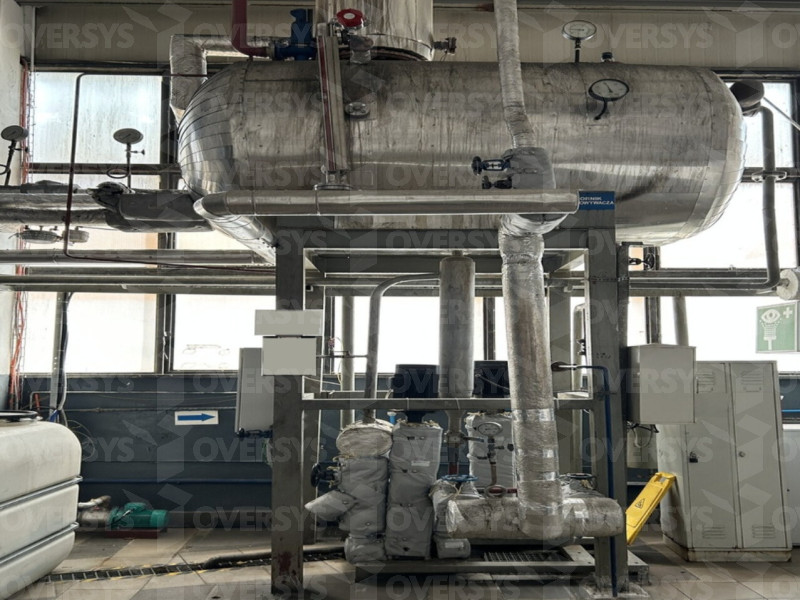

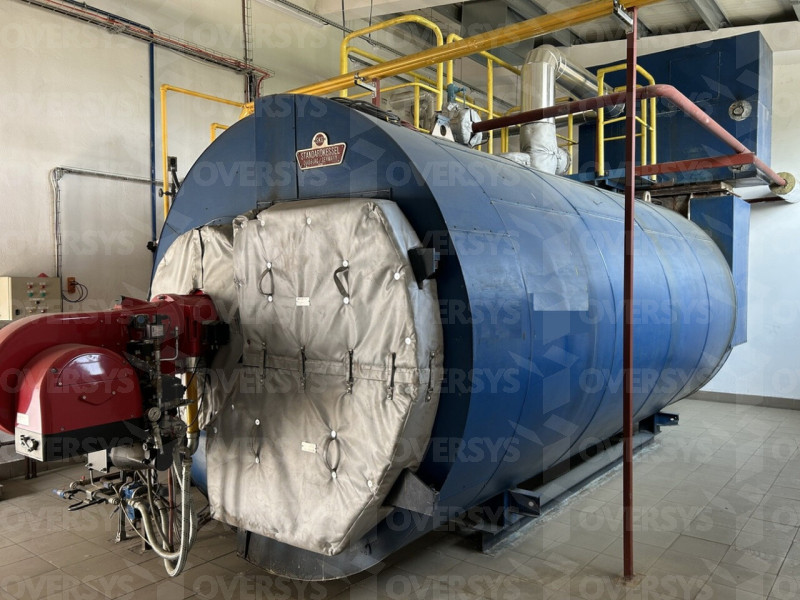

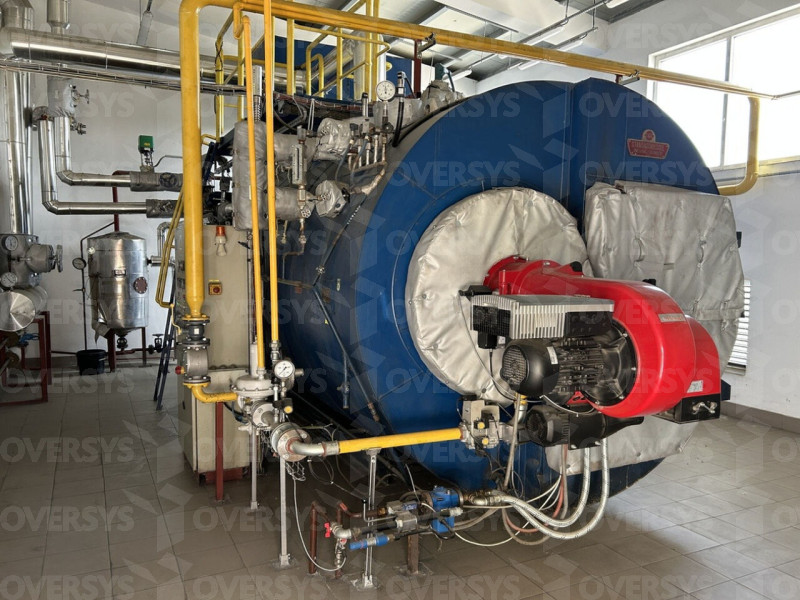

- STANDARDKESSEL DUISBURG SKG BOILER - 1995
- Weishaupt WM-GL30 Burner
- Pressure: 18bar
- Efficiency: 6 tons/hour
MANY VALUABLE SPARE PARTS (ALSO SET OF SPARE CORRUGATING ROLLS) ARE INCLUDED IN THE SCOPE OF SUPPLY.
Detalles técnicos
| Referencia de Oversys | U77000526 |
|---|---|
| Formato | 2500 mm |
| Tipo | CORRUGADORA / ONDULADORA |
| Fabricante | BHS |
| Modelo | SEVERAL |
| Año | 2016 |
| Continente | EUROPA |
