Andes Complete New Corrugator, Lhdpg, 2800Mm / 110"

We present this ANDES COMPLETE NEW CORRUGATOR, RHDPG working width 2800mm / 110" , manufactured in 2025.

This machine is brand new and was never used. Due to an unexpected cancellation from the original buyer, it is now available below market value. A rare chance to acquire a new unit immediately available, at an unbeatable price.

Machine is composed of:

10 sets Rail and Carriage with paper mill hydraulic flap device - Length:14m; Hydraulic drive;

WET END

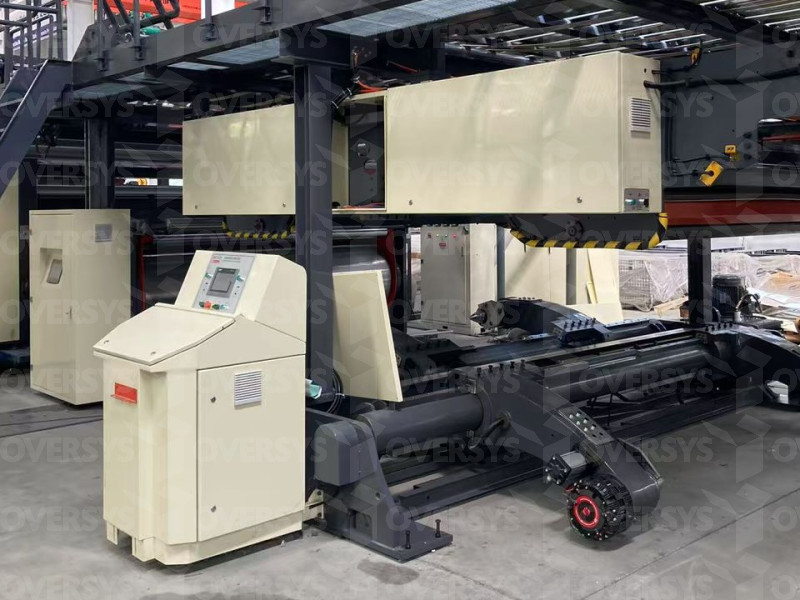

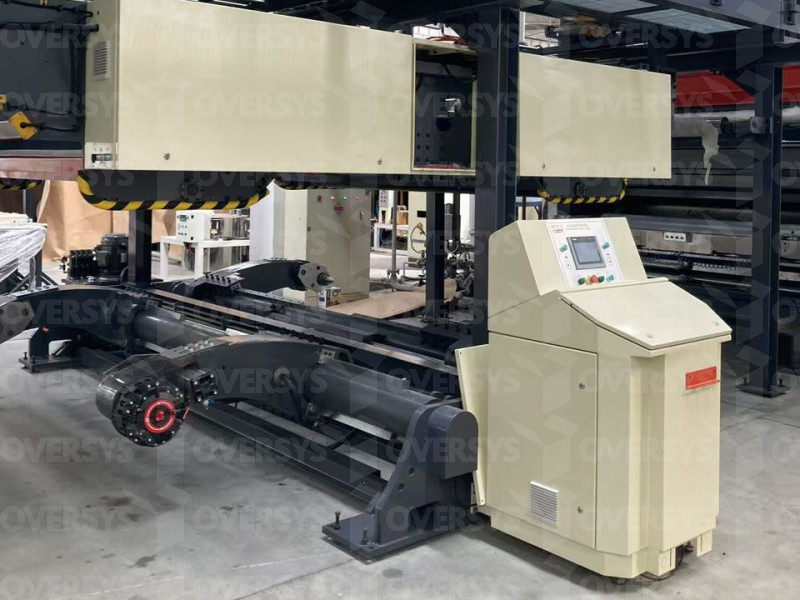

• 5 x AUTOMATIC SPLICERS

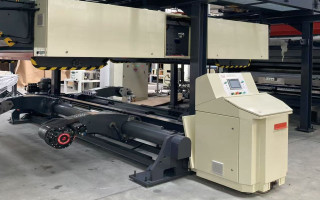

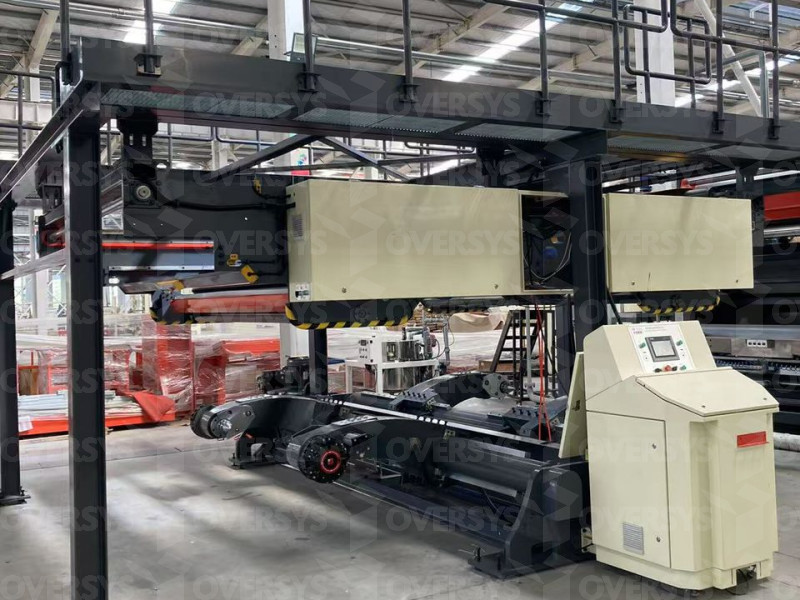

• 5 x ROLLSTANDS

  • With paper mill Ejector device; S
  • Pneumatic Brake with 6 points;
  • Double Hydraulic cylinders for arm up and down;
  • With self-lock function for hydraulic system;

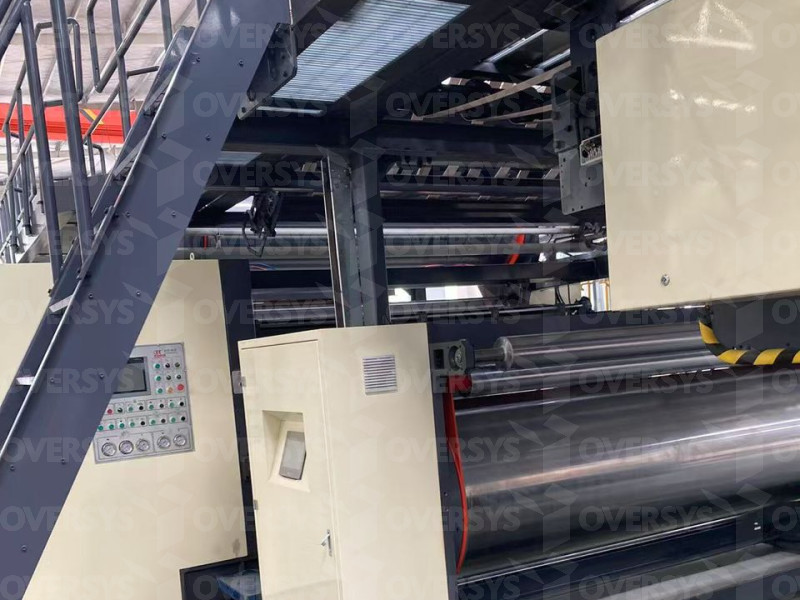

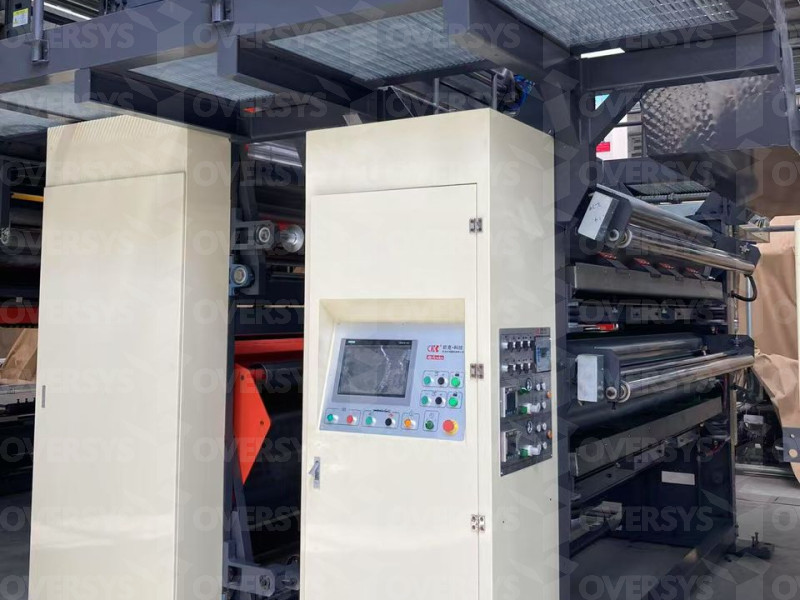

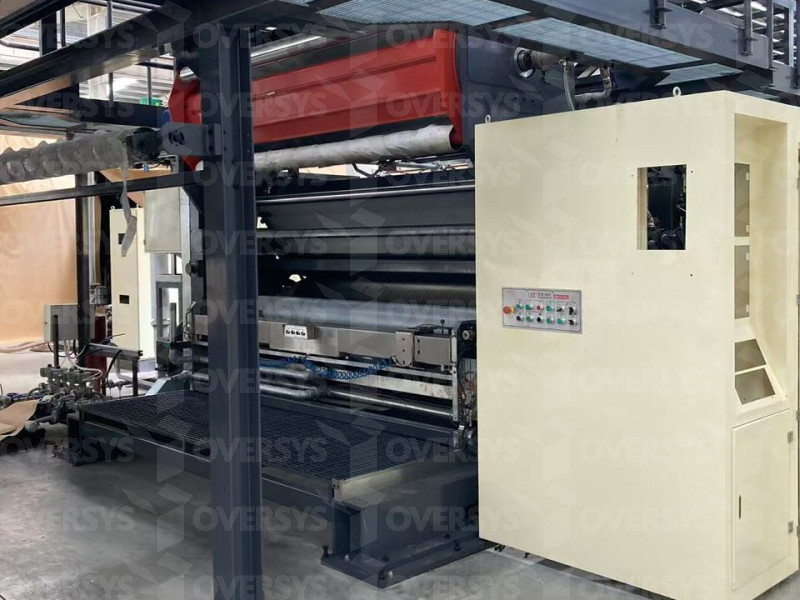

• 2 x SINGLE FACERS

  • Cassete tipe
  • Flutes B, C & E (with aditional B & C pair of corrugate rolls)
  • With electric car;
  • Upper corrugator roll diameter:540mm; lower roll diameter:320mm;
  • Corrugator roll Brand: BHS;
  • Negative Pressure Suction design for corrugator roll;
  • Peripheral heating roll;
  • Hydraulic control;
  • Full servo motor;
  • Automatic Gap adjusting;
  • With arc plate for continuous heating;
  • High-pressure fan import from German;

• 2 x PREHEATERS

  • Installed on the bridge;
  • Diameter:1000mm;
  • Self circulating;
  • Automatic angel adjusting;
  • With tension balance roll;

• PRECONDITIONES

  • Installed on the bridge;
  • Diameter:1000mm;
  • Self circulating;
  • Automatic angel adjusting;
  • With tension balance roll;

• TRIPLEX Multiple pre-heater

  • Installed on the bridge;
  • Diameter:1000mm;
  • Self circulating;
  • Automatic angel adjusting;
  • With tension balance roll;

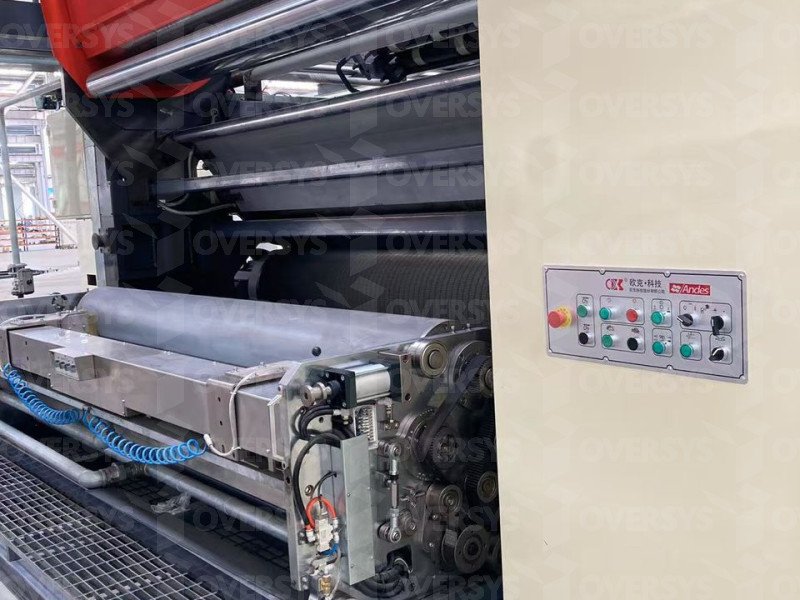

• GLUING UNIT

  • Automatic glue quantity adjusting;
  • Automatic glue width adjusting;
  • Glue doctor roll;

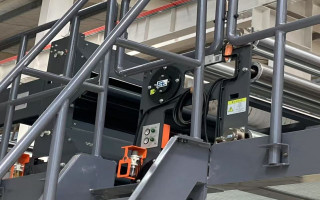

• Two layers Over-head Bridge

  • E+L Bridge alignment and tension control system

• DOUBLE BACKER

  • 20 hot plates;
  • New model thin pipeline type hot plates;
  • All pressure shoe system;
  • Automatic temperature control system;
  • Servo motor drive; Independent upper and lower servo drive;
  • With arc plate for continuous heating;

DRY END

• ROTARY SHEAR

• 2 x SLITTER SCORER

  • With Pre-creasing wheels;
  • Full servo;
  • 1 second order change;
  • Three type creasing wheel;
  • 8 slitting blades with14 creasing;

• Pneumatic Web extend table

• DOUBLE CUT OFF

  • Double servo motor drive;

• DOUBE STACKER

  • Full servo;
  • Upper Stack: 4000mm
  • Down Stack: 4200mm

• Steam System

• Automatic Glue Kitchen

• Production management System

  • Width LED Display;

• Trim shredder system

• Machine Speed: 400m/min

• Full Siemens S7 1200 & 1500
