Flat Bed Die Cutter
Bobst Spo 160 A Matic Flat Bed Die Cutter With Prefeeder, 2 Bobst 160 Flexo Print Units And Bundle Breaker
U72790525
EUROPE ·
1994
Description
We present the following BOBST SPO 160 A MATIC Flat Bed Die Cutter Line, 1100mm x 1600mm / 43" x 63", manufactured in 1994 complete with RODA PREFEEDER, 2 FLEXO PRINT UNITS AND PALLMACH BUNDLE BREAKER.
This whole line can be inspected in production at any time and is immediately available.
The machine is composed by:

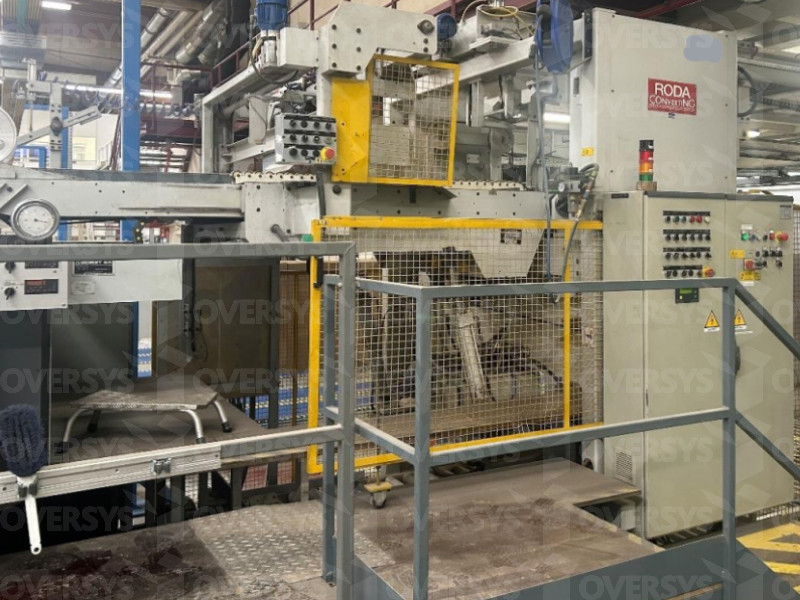

RODA FPK 1600 PREFEEDER, year 2000
- Maximum pile height: 2000mm / 78.75"
- Maximum pile weight: 1400kg
- Minimum sheet size: 400mm x 600mm / 15.75" x 24"
- Maximum sheet size: 1270mm x 1650mm / 50" x 65"
- Maximum speed: 9,000 sheets/h
- Installed power: 14Kw
- Electrical voltage: 400V - 50Hz -3PE
- Control voltage: 24VDC
- Compressed air consumption: 15m3/h at 6 bar
- Connection: 1/2"
BOBST 160 A MATIC Flat Bed Die Cutter, year 1994
- Feeder
- Die Cutting Unit
- Stripping Section
- Delivery Section
- Transfer conveyor
- Chase loader
- Max sheet format: 1100mm x 1600mm / 43" x 63"
- Min. sheet format: 520mm x 600mm / 20.4" x 23.6"
- Thickness of corrugated board up to : 9mm / 0.35"
- Cutting Force : 400T
- Speed: 6500 boxes/hour
2 BOBST FLEXO 160 PRINT UNTIS, year 1994
- Vacuum Sheet transfer
- Maximum printing size: 1100mm x 1600mm / 43" x 63"
- Thickness of printing plates:
- Maximum: 8 mm
- Minimum: 3 mm
Pallmach Bundle Breaker, year 1999
- Model: 1600 inline
- Control voltage: 380/220V - 24 VDC
- Frequency: 50 Hz
- Maximum rated power (Imax): 12 A
- Rated power (In): 9 A
- Connected load: 6 kW
- Air pressure: 6 bar
- Compressed air consumption: 1500l/min
Technical data
| Oversys Reference | U72790525 |
|---|---|
| Format | 1100 mm x 1600 mm |
| Type | FLAT BED DIE CUTTER |
| Manufacturer | BOBST |
| Model | SPO 160 |
| Year | 1994 |
| Continent | EUROPE |
