Corrugator
Complete Bhs/Fosber/Mitsubishi Corrugator, Rhdpg, 2500/98" Year 2004-2024
U74801125
In production
Available 2026-02-01
News
EUROPE ·
2013
The price only available for registered users
Description
We present the following COMPLETE BHS/FOSBER/MITSHUBISHI CORRUGATOR (RHDPG), 2500mm / 98", manufactured between 2004 and 2024.
This complete corrugating line can be inspected in production at any time and is available in February 2026.
Machine is composed of:
WET END
- 4 BHS SP-M 300 SPLICERS, 3x year 2003 and 1x year 2006
- 4 BHS RS-M ROLLSTANDS, year 2010

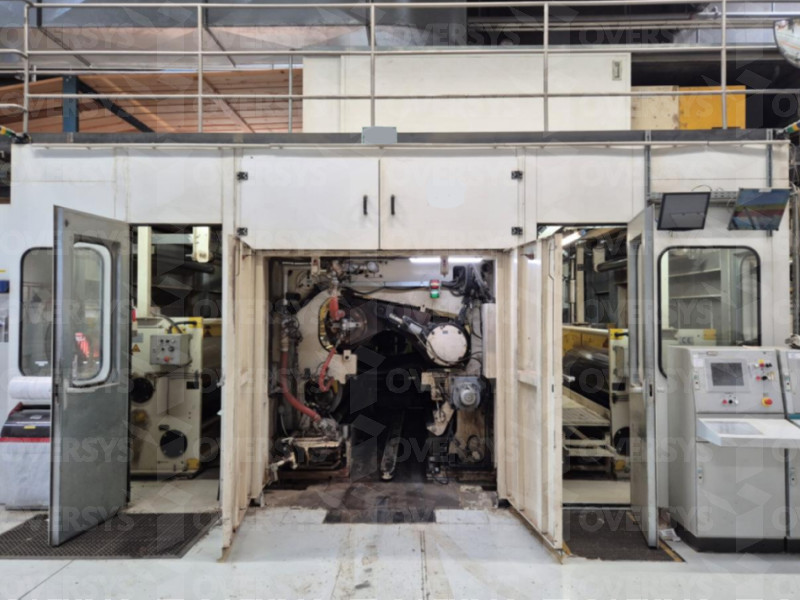

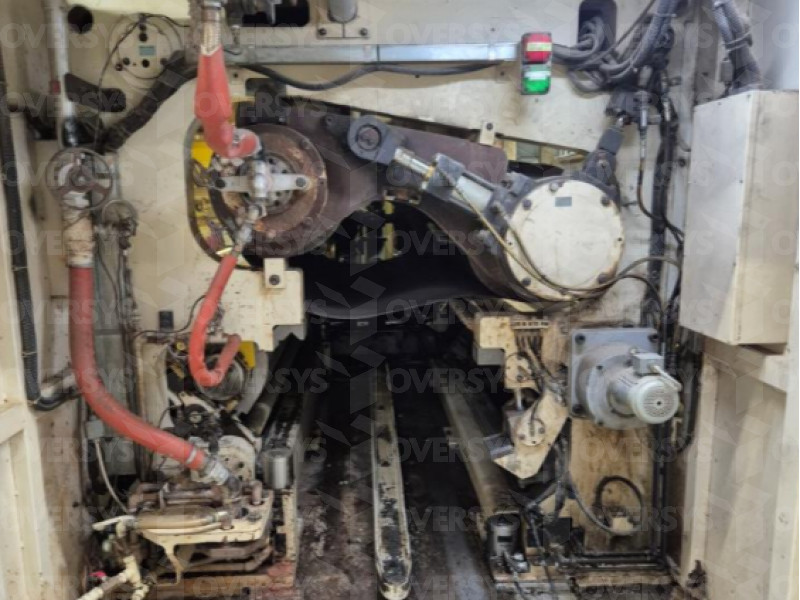

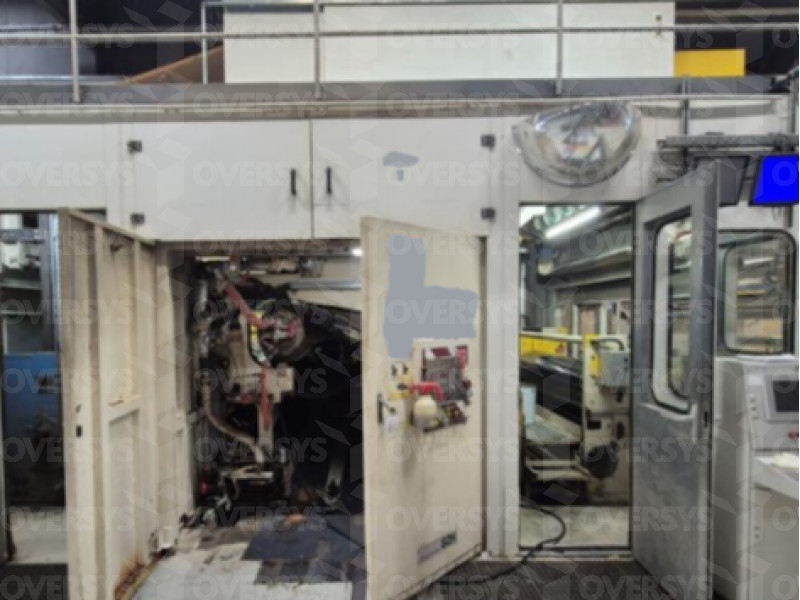

- 2 MHI SINGLE FACERS, 1x year 2004 and 1x year 2013
- both with casset system
- both with flutes: R,B,C,E
- Triplex Preheater BHS PH-M, year 2005

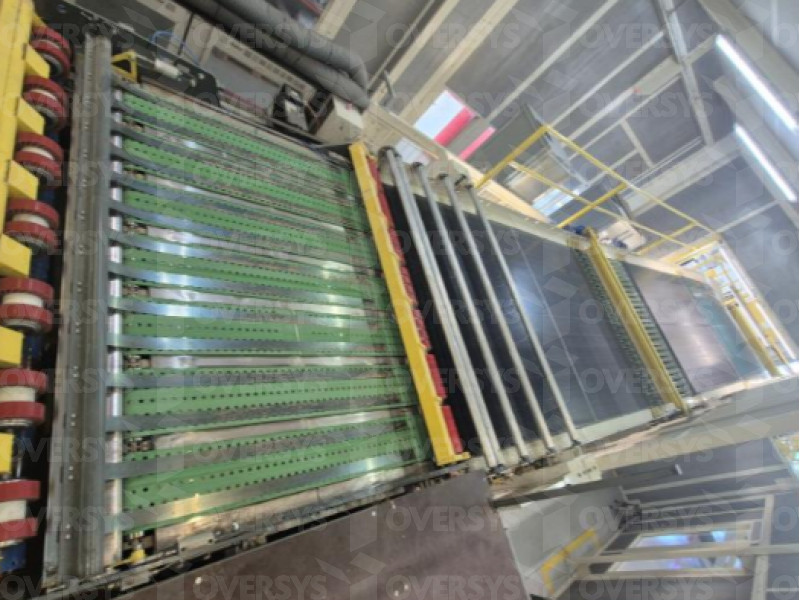

- BRIDGE with Bridge Brake, Web aligner and web length control, all E&L, year 2024
- MITSUBISHI 60J GLUE UNIT, year 2013

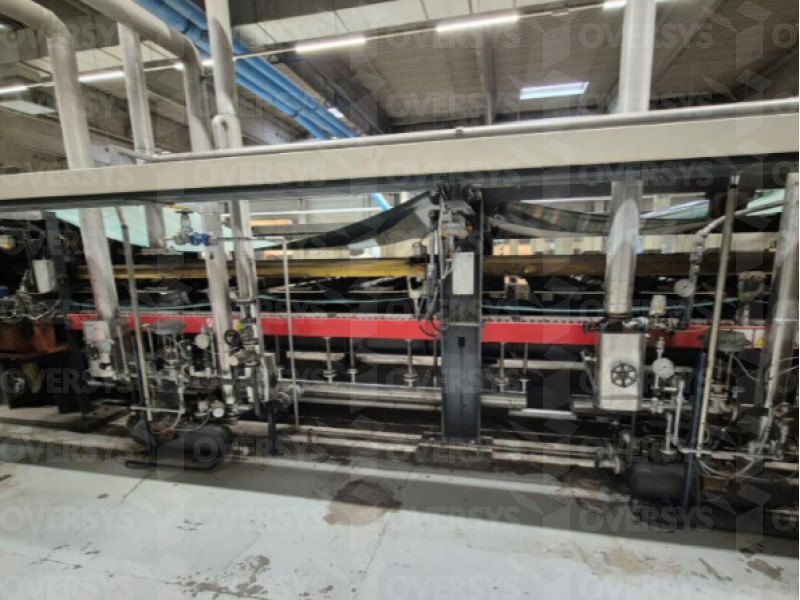

- FOBER EXPRESS 400 Double Backer, year 2014
DRY END
- FOSBER RS 400 ROTARY SHEAR, year 2014

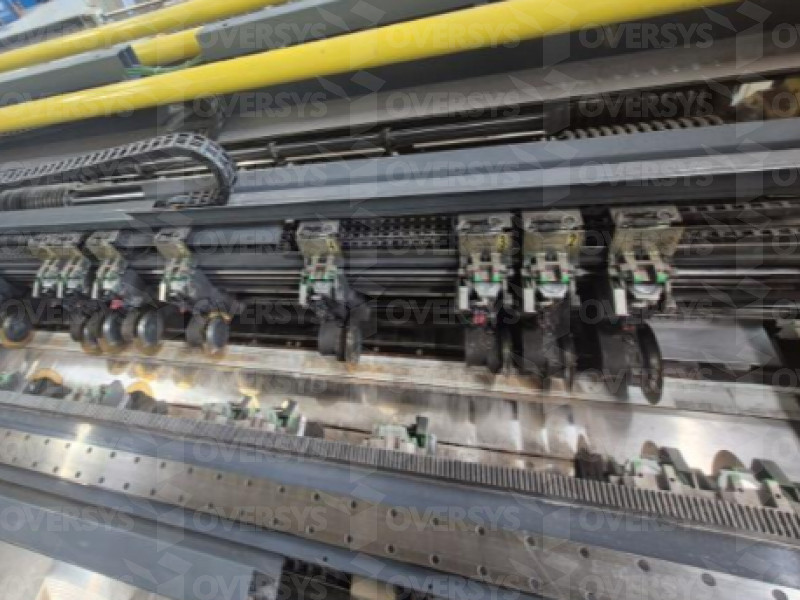

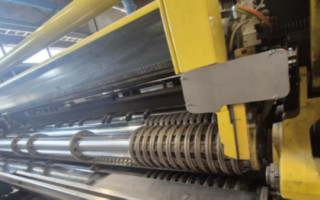

- FOSBER TWIN 400 SLITTER SCORER, year 2013 with E&L Trimmaster year 2024
- FOSBER MASTER 2130 CUT OFF, year 2013

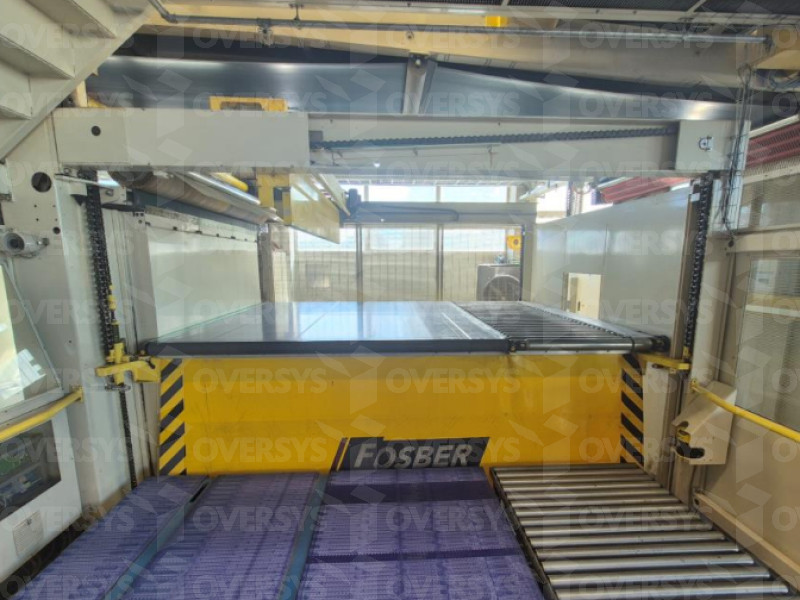

- FOSBER TR4 AAR-H DOUBLE DOWN STACKER, year 2013
- upper chamber: 4500mm / 177"
- lower chamber: 3500mm / 137"
Main Upgrades:
- Main Motors and Drives of both MHI Single Facers have been changed in May 2025
- Zero Splice System 2023
- Double Backer with new Dura Spiral XL Belt (140mio meters runned)
- R,C,B casettes renewed in 2023/2024
Technical data
| Oversys Reference | U74801125 |
|---|---|
| Format | 2500 mm |
| Type | CORRUGATOR |
| Manufacturer | BHS |
| Model | SEVERAL |
| Year | 2013 |
| Continent | EUROPE |
