Corrugator
Complete Agnati Corrugator, Rhdpg, Flutes B, C, E, Format 2500Mm / 98”
U76650426
Connected
News
EUROPE ·
1996
The price only available for registered users
Description
We present COMPLETE AGNATI CORRUGATOR, RHDPG, FLUTES B, C, E, working width 2500mm / 98.4", with units manufactured between 1996 and 2021.
The machine is in good condition, connected and available immediately.
Machine configuration:
WET END

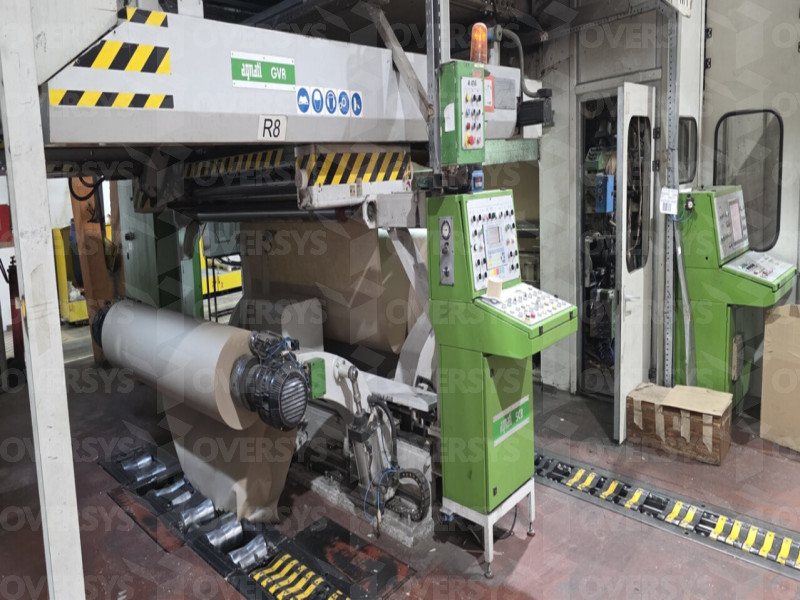

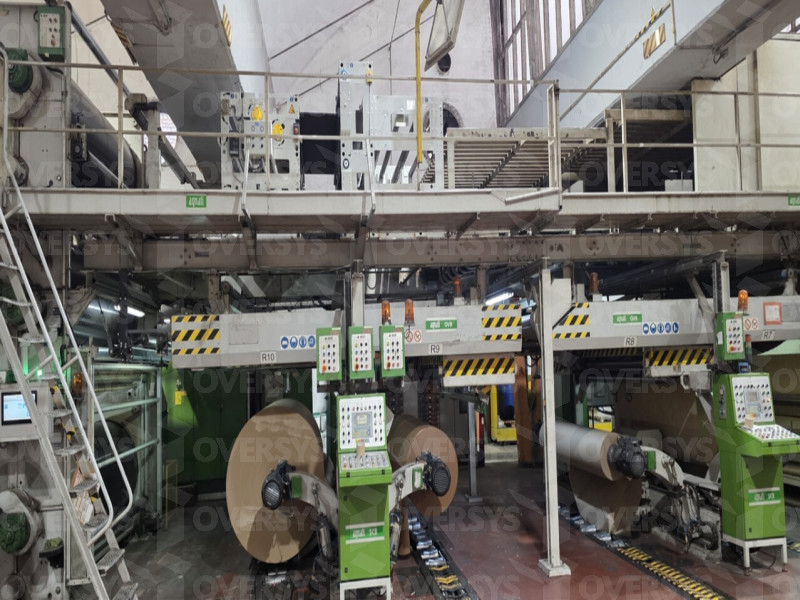

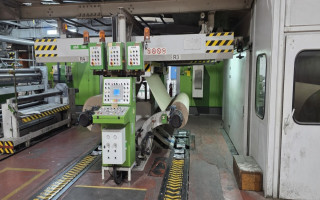

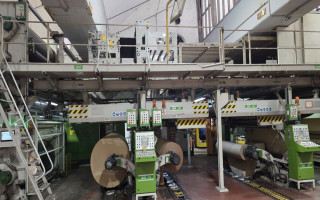

- 5 AGNATI GVR SPLICERS - 1996

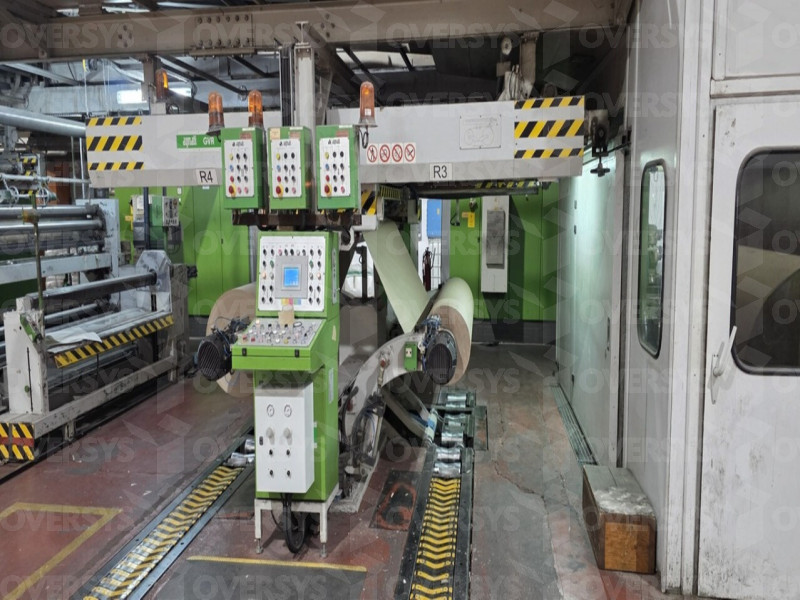

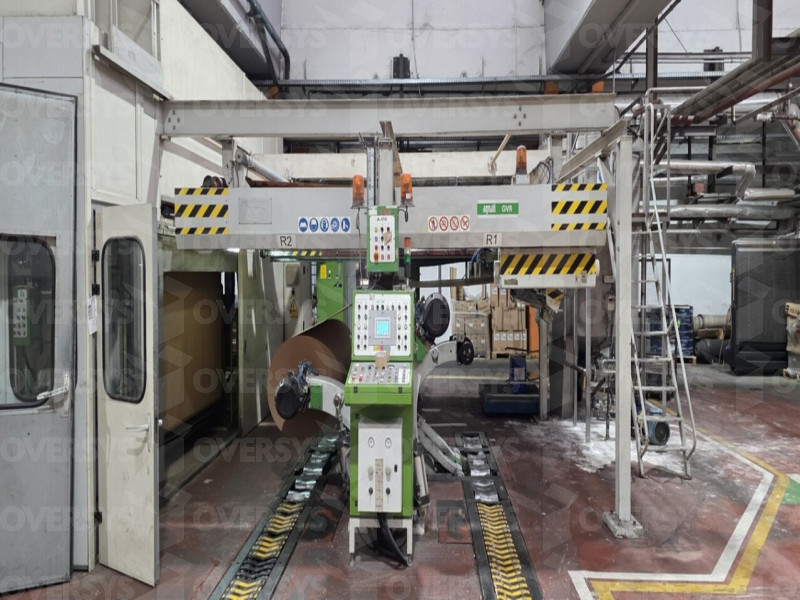

- 5 AGNATI SCB ROLLSTANDS - 1996

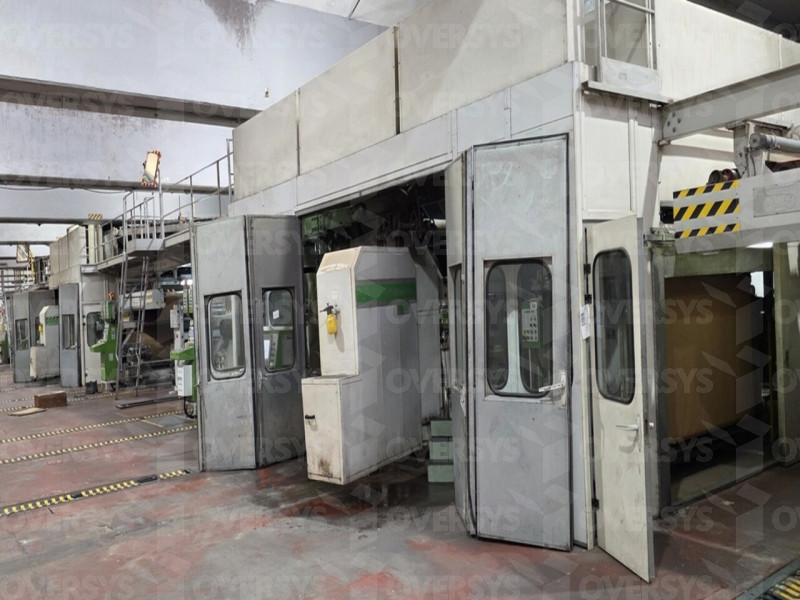

- 2 AGNATI S90 SINGLE FACERS - 1996
- B, C & E flutes
- max. speed: 300m/min
- 1 AGNATI PRTR TRIPLEX WITH 3 PREHEATERS - 1996

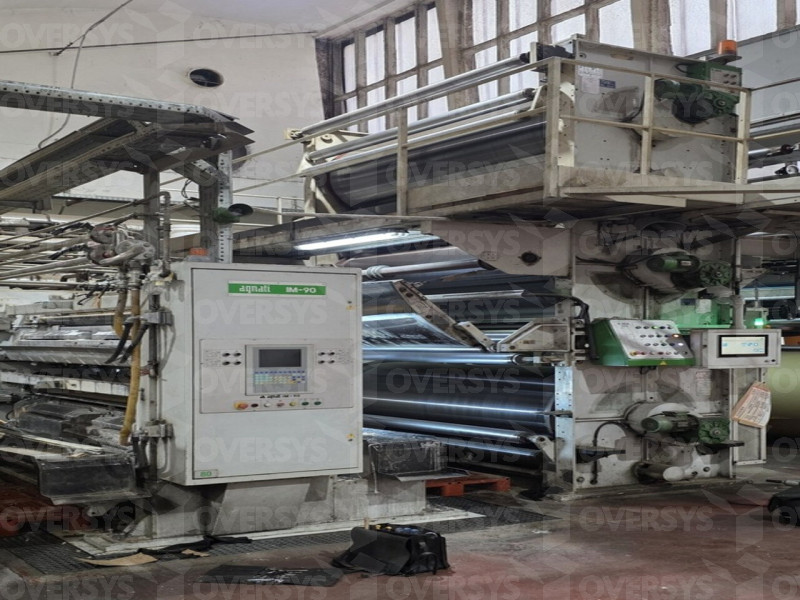

- 1 AGNATI IM90 GLUE UNIT, shoe roll arrangement - 1996
- BRIDGE WITH E+L TENSIONMASTER-PFW BRAKE AND E+L CORRALIGNER-BVW - 2021

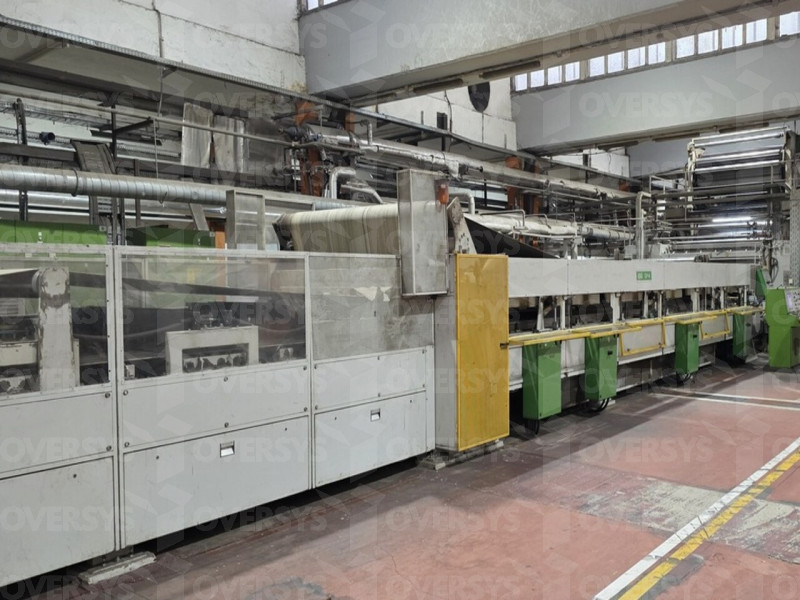

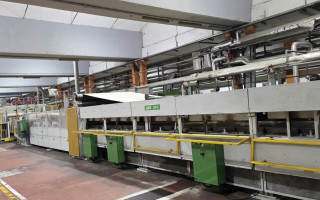

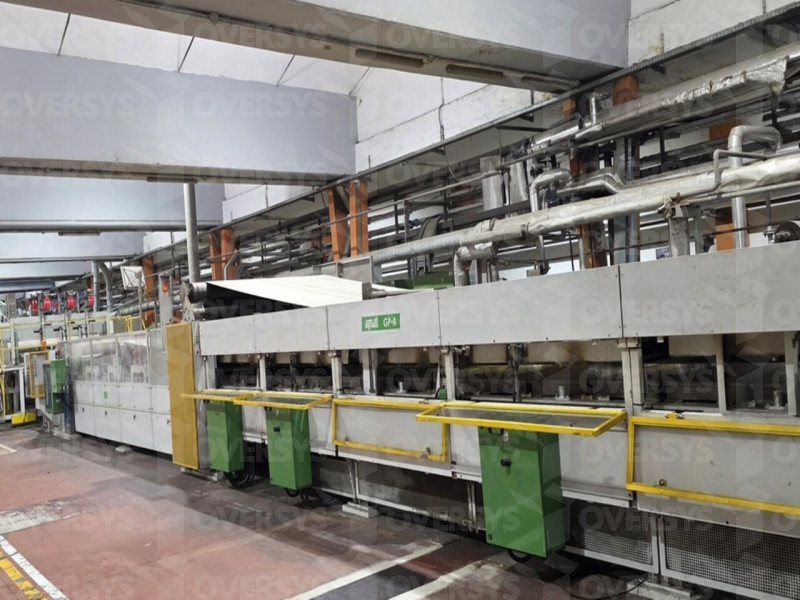

- AGNATI GPA 3+2 DOUBLE BACKER - 1996
- 18 heating plates
- 3 hot plates / shoes sections
- Muhlen Sohn belts: 43.15m upper section + 18.8m lower section
DRY END
- AGNATI GAPLESS ROTARY SHEAR - 2004
- WEB ALIGNER - SLITTER SCORER TRIM ADJUSTMENT

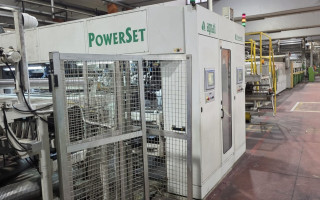

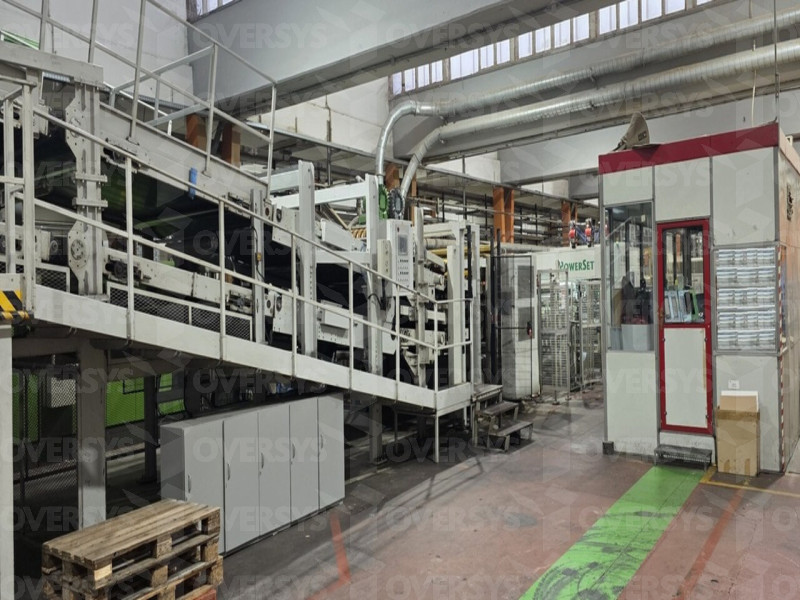

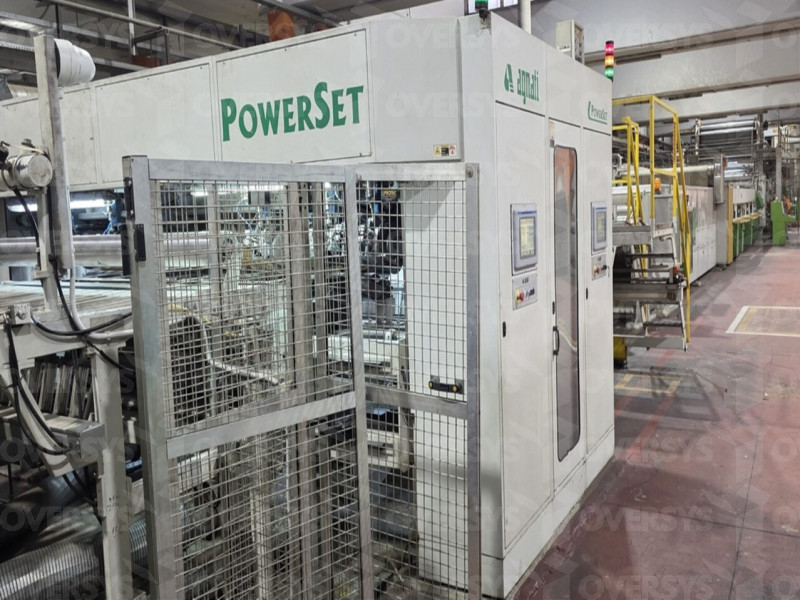

- AGNATI POWERSET SLITTER SCORER - 2004
- max. speed: 350m/min
- top cut
- knives: 8+8
- scorers: 14+14
- max. 7-outs
- DUST REMOVAL SYSTEM ON CUT OFF AND SLITTER SCORER

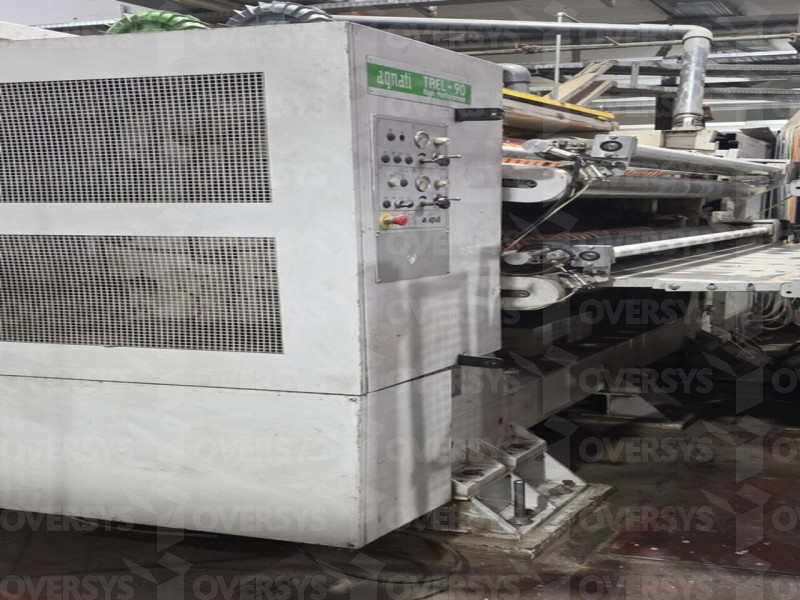

- AGNATI TREL90 CUT OFF - 1996

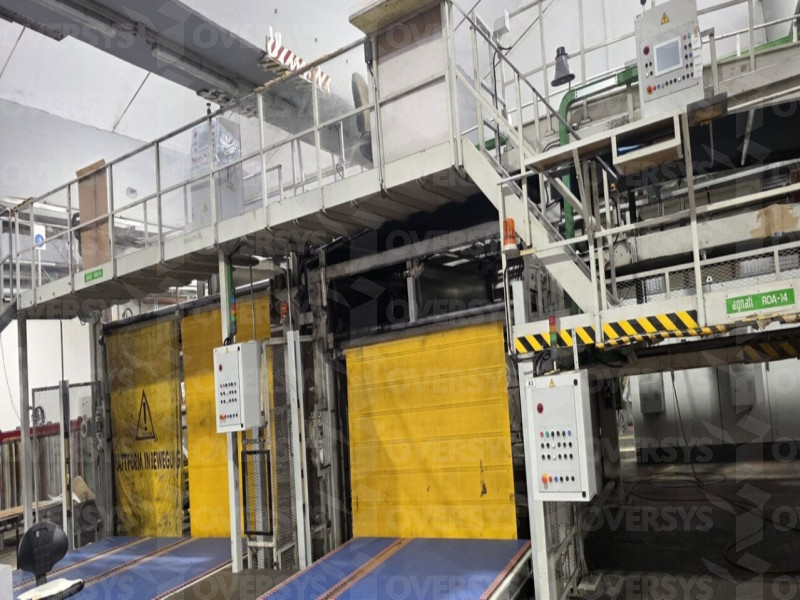

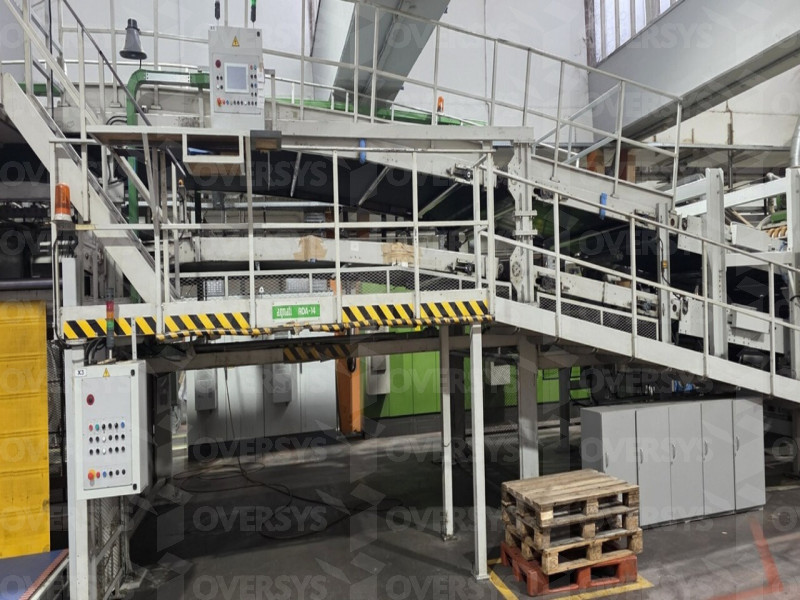

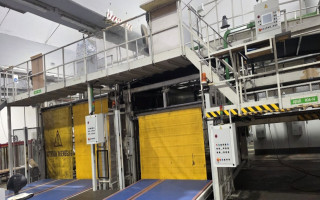

- AGNATI RDA14 STACKER - 1996
- Upper Stacker: 4200mm / 165.4"
- Bottom Stacker: 2800mm / 110.2"
- DISCHARGE NEE BLUE BELT CONVEYORS - 2023
SERVICE EQUIPMENT
- CERESTAR/BVG STARCH KITCHEN - 1993
- ASSI DOMAN TEAR TAPE MODUL2 - 1997
- BAVIERA CONDENSATE SYSTEM
Technical data
| Oversys Reference | U76650426 |
|---|---|
| Format | 2500 mm |
| Type | CORRUGATOR |
| Manufacturer | AGNATI |
| Model | S90 |
| Year | 1996 |
| Continent | EUROPE |
