Case Erecting Machine
Boix Mct-1/Ve Case Erector, Year 2020
U75970326
EUROPE ·
2020
Description

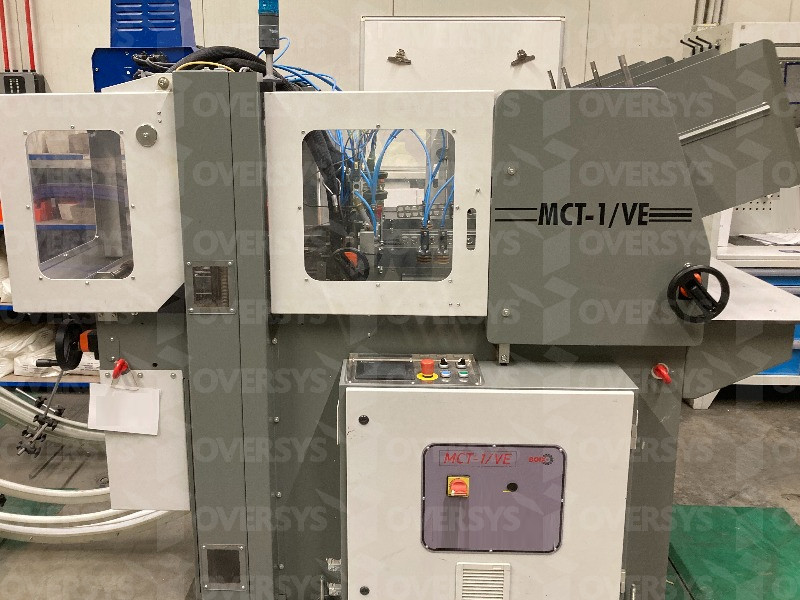

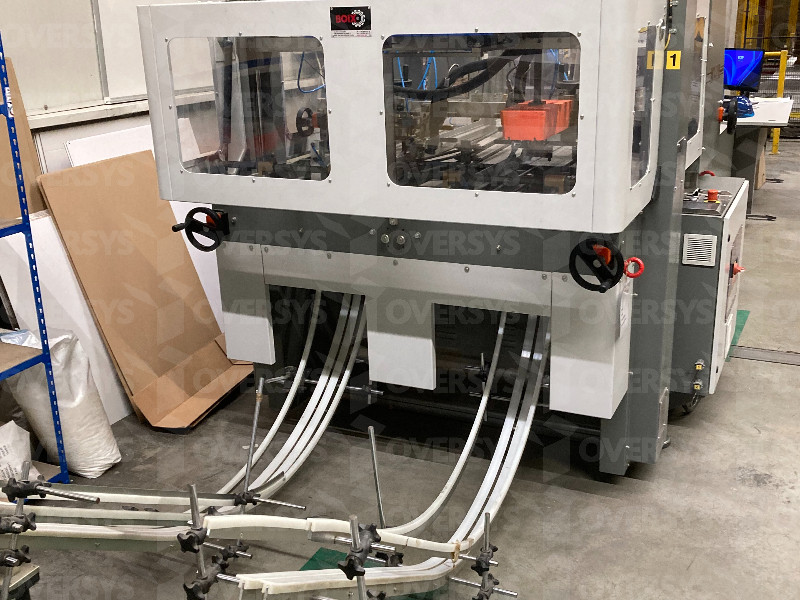

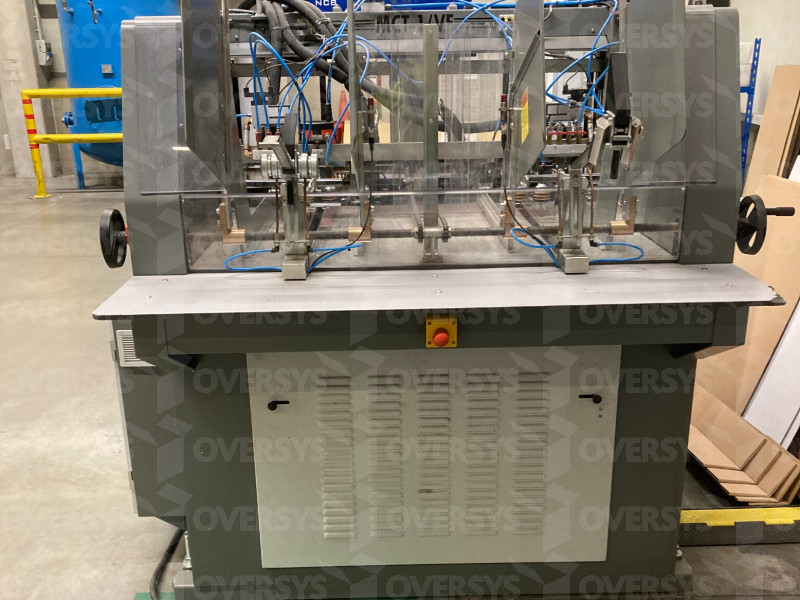

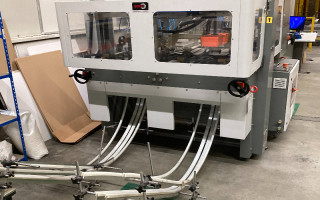

We present this BOIX, model MCT-1/VE double head Case Erector, 500mm x 600mm / 20" x 24", manufactured in 2020. The machine is connected and immediately available.
The MCT-1/VE is an automatic, adjustable, compact and easy-to-use machine for the forming of punnets or small trays type C-1.
The machine has a single motor which operates the main movements, thereby ensuring that the 2 heads synchronize perfectly.

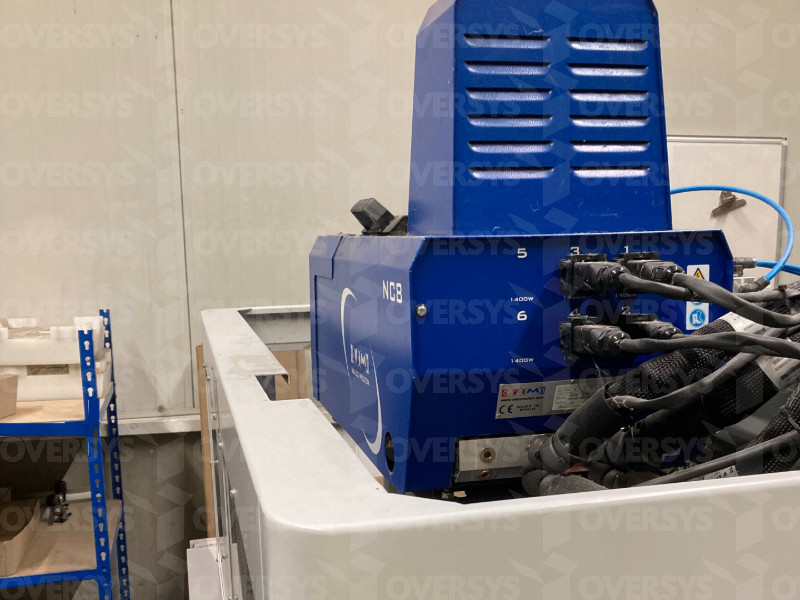

- Glue System: Hot melt Glue injection system
- Possibility of adjusting each head with different sizes or design of punnets
- Speed regulation by frequency inverter with automatic queue compensation
- max. mechanical speed: Up to 6,000 trays/hour (3,000 per head)
- Total Power: 7 Kw.
- Electrical Supply: 380/220 V (3F+N+PE) – 50/60 Hz
- Net Weight: 1,475 Kg.
- Electrical Supply:Vacuum
- Change of Size: By clamps with threaded rods and counters
- Order change time: 20-40 min
- Air Consumption: 540 l/min.
- Working Air Pressure:6 BAR
Technical data
| Oversys Reference | U75970326 |
|---|---|
| Format | |
| Type | CASE ERECTING MACHINE |
| Manufacturer | BOIX |
| Model | MCT-1/VE |
| Year | 2020 |
| Continent | EUROPE |
