Boxmaker
Zemat Boxmat Pro Ak-03-2400 Boxmaker, Year 2019
U72940525
Connected
News
EUROPE ·
2019
The price only available for registered users
Description

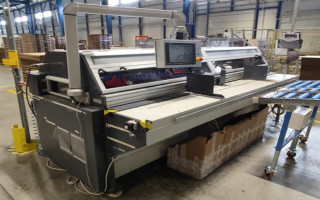

We present this ZEMAT BOXMAT PRO AK-03-2400 BOXMAKER, max. format 2400mm x 9000mm / 94.5" x 354.3", manufactured in 2019.
The machine is in very good condition, connected with a test run possibility and available immediately.
Machine details:
- Automatic Feeder
- HHS Gluing Section - water based glue
- Automatic Order Change with HMI Control Panel (~47 FEFCO codes + freestyle mode)
- Fully Servo Driven
Technical specification:
- Max. sheet format (width x length): 2400mm x 9000mm / 94.5" x 354.3"
- Min. sheet format (width x length): 250mm x 650mm / 9.8" x 25.6"
- Materials: corrugated board flutes B, C, BC, BE, thickness up to 7mm
- Distance between cutting knives: 70-2000mm / 2.8-78.7” (with 200mm / 7.9” knives)
- Cutting width: 7-8mm / 0.28-0.31”
- Minimum distance between slots: 20mm / 0.8”
- Dimensions (L x W x H): 3400mm x 1600mm x 1600mm / 134" x 63" x 63"
- Power requirements: 3 x 400V, 50/60Hz, 3.5kW, 4kVA
- CE Marking
Technical data
| Oversys Reference | U72940525 |
|---|---|
| Format | 9000 mm x 2400 mm |
| Type | BOXMAKER |
| Manufacturer | ZEMAT |
| Model | BOXMAT PRO AK-03-2400 |
| Year | 2019 |
| Continent | EUROPE |
