Tekturnica Andes Technology (Guangdong) Co., Ltd ANDES używana

We present this ANDES COMPLETE NEW CORRUGATOR, LHDPG working width 2500mm / 98", manufactured in 2025.

This machine is brand new and was never used. Due to an unexpected cancellation from the original buyer, it is now available below market value. A rare chance to acquire a new unit immediately available, at an unbeatable price.

Machine is composed of:

10 sets Rail and Carriage with paper mill hydraulic flap device - Length:14m; Hydraulic drive;

WET END

5 x AUTOMATIC SPLICERS

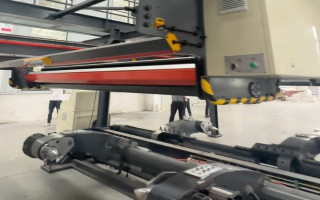

5 x ROLLSTANDS
- With paper mill Ejector device;
- Pneumatic Brake with 6 points;
- Double Hydraulic cylinders for arm up and down;
- With self-lock function for hydraulic system;
2 x SINGLE FACERS
- Cassete type
- Flutes B, C & E (with aditional B & C pair of corrugate rolls)
- With electric car;
- Upper corrugator roll diameter:540mm; lower roll diameter:320mm;
- Corrugator roll Brand: BHS;
- Negative Pressure Suction design for corrugator roll;
- Peripheral heating roll;
- Hydraulic control;
- Full servo motor;
- Automatic Gap adjusting;
- With arc plate for continuous heating;
- High-pressure fan import from German;
2 x PREHEATERS
- Installed on the bridge;
- Diameter:1000mm;
- Self circulating;
- Automatic angel adjusting;
- With tension balance roll;
PRECONDITIONES
- Installed on the bridge;
- Diameter:1000mm;
- Self circulating;
- Automatic angel adjusting;
- With tension balance roll;
TRIPLEX Multiple pre-heater
- Installed on the bridge;
- Diameter:1000mm;
- Self circulating;
- Automatic angel adjusting;
- With tension balance roll;

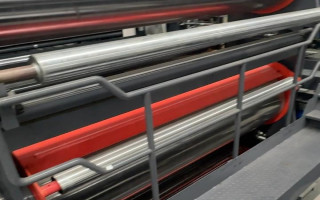

GLUING UNIT
- Automatic glue quantity adjusting;
- Automatic glue width adjusting;
- Glue doctor roll;
Two layers Over-head Bridge
- E+L Bridge alignment and tension control system

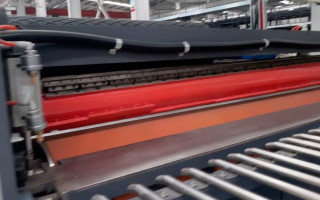

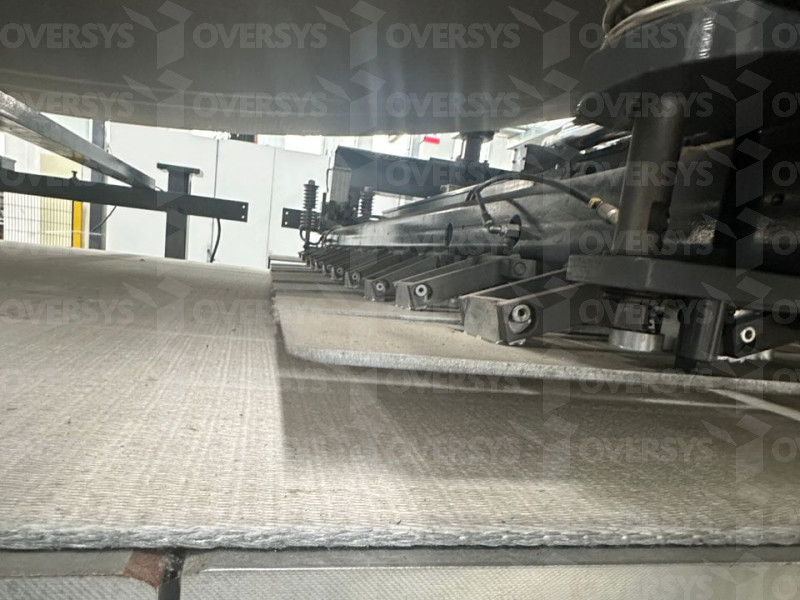

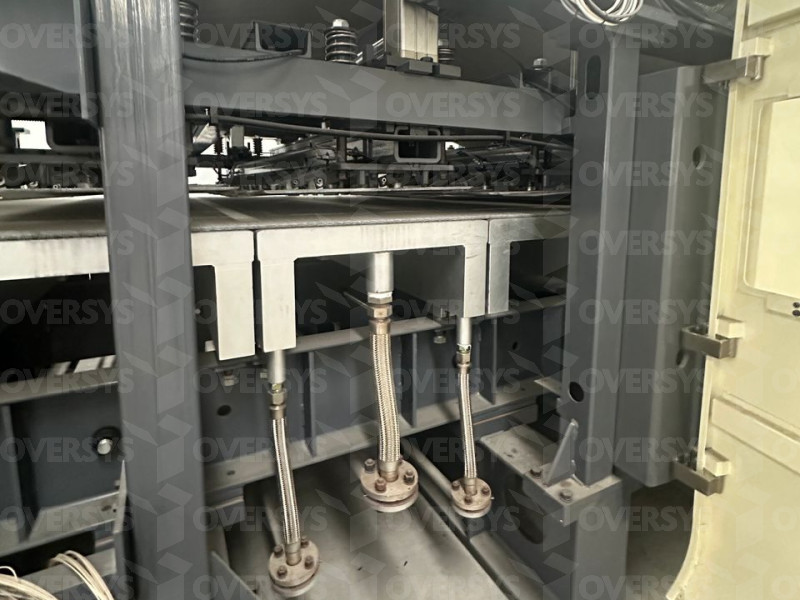

DOUBLE BACKER
- 20 hot plates;
- New model thin pipeline type hot plates;
- All pressure shoe system;
- Automatic temperature control system;
- Servo motor drive; Independent upper and lower servo drive;
- With arc plate for continuous heating;

DRY END

ROTARY SHEAR
2 x SLITTER SCORER
- With Pre-creasing wheels;
- Full servo;
- 1 second order change;
- Three type creasing wheel;
- 8 slitting blades with14 creasing;
Pneumatic Web extend table
DOUBLE CUT OFF
- Double servo motor drive;

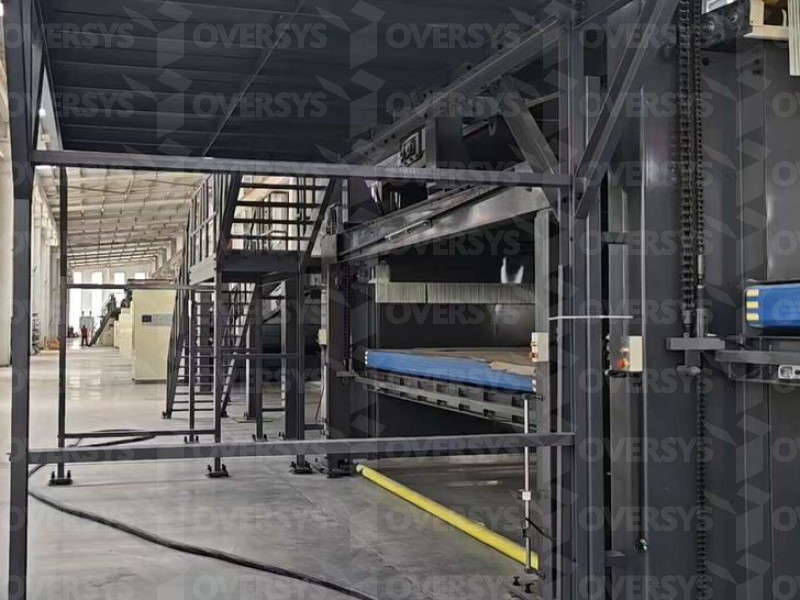

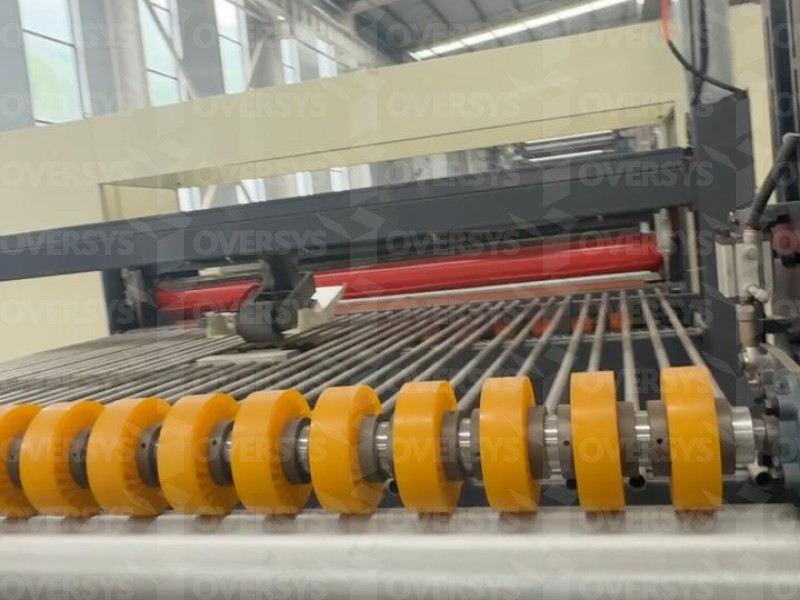

DOUBE STACKER
- Full servo;
- Upper Stack: 4000mm
- Down Stack: 4200mm

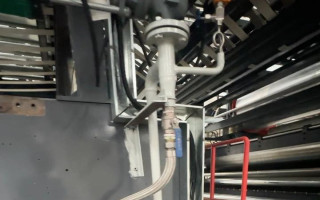

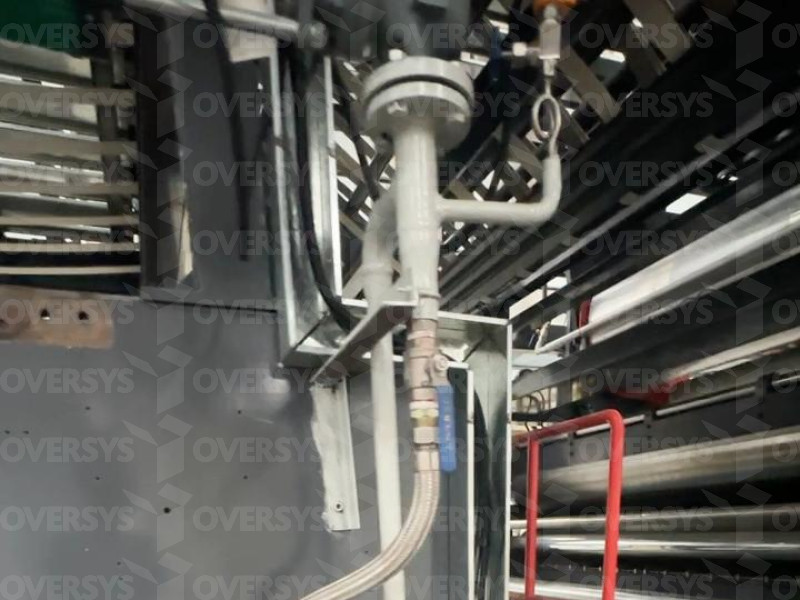

Steam System
Automatic Glue Kitchen

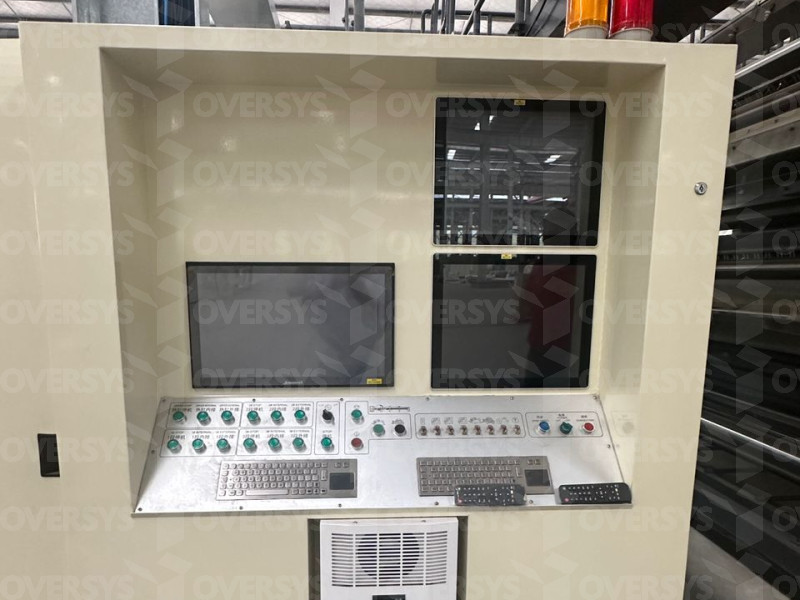

Production management System
- Width LED Display;
Trim shredder system
Machine Speed: 400m/min
Siemens S7 & Yaskawa
