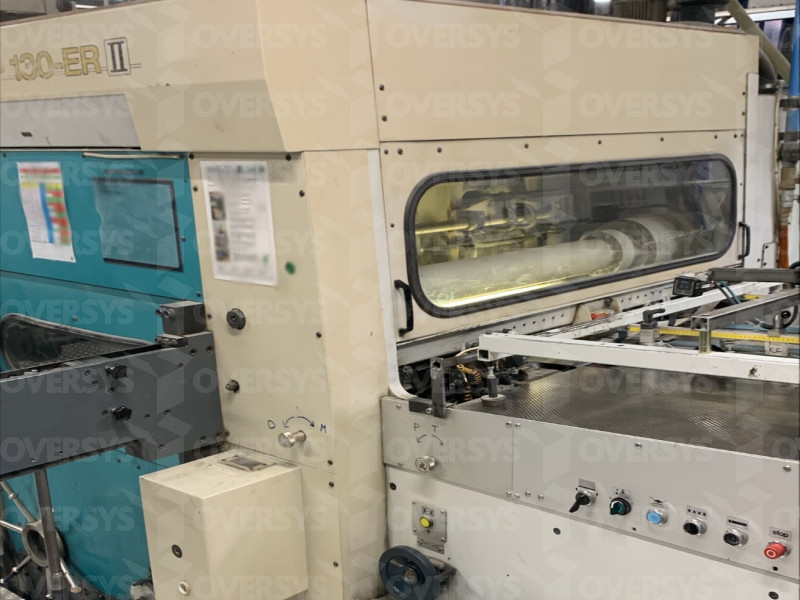

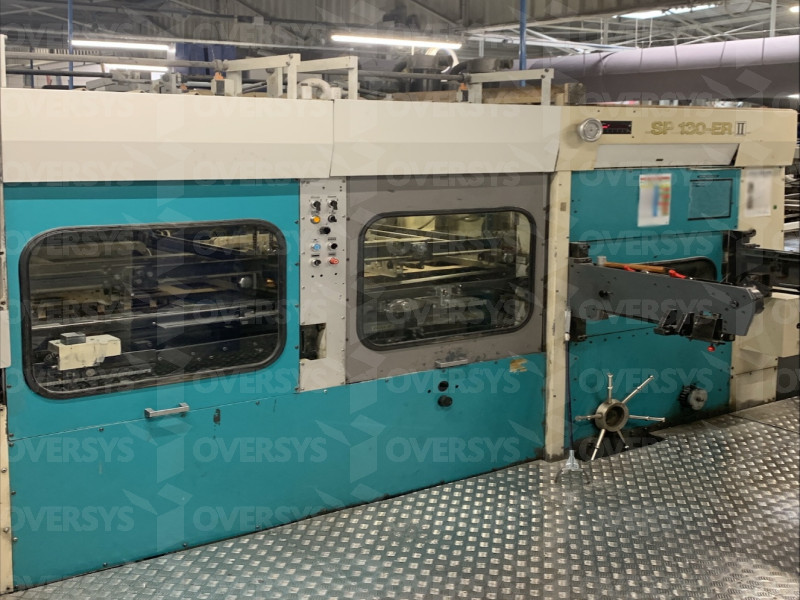

Bobst Sp 130 Er Ii Flat Bed Die Cutter

We present this BOBST SP 130 ER II Flat Bed Die Cutter, 920mm x 1300mm / 36" x 51", manufactured in 1997.

The machine can be inspected at any time in production and available immediately.

Details:

• FEEDER

  • Manual non-stop feeder palet
  • Pile tray with manual lateral correction during production.
  • Suction unit with multiple adjustments
  • Head feeder auto-adjustement with bottom pile

• MACHINE

  • Platform
  • Removable platform on cylinder for feeder

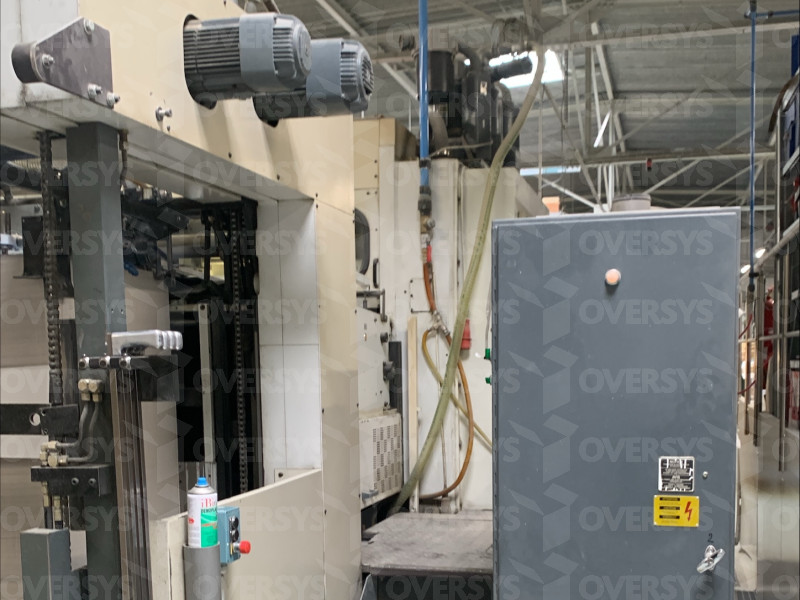

  • Recent asynchronous main motor
  • Machine raised 650mm

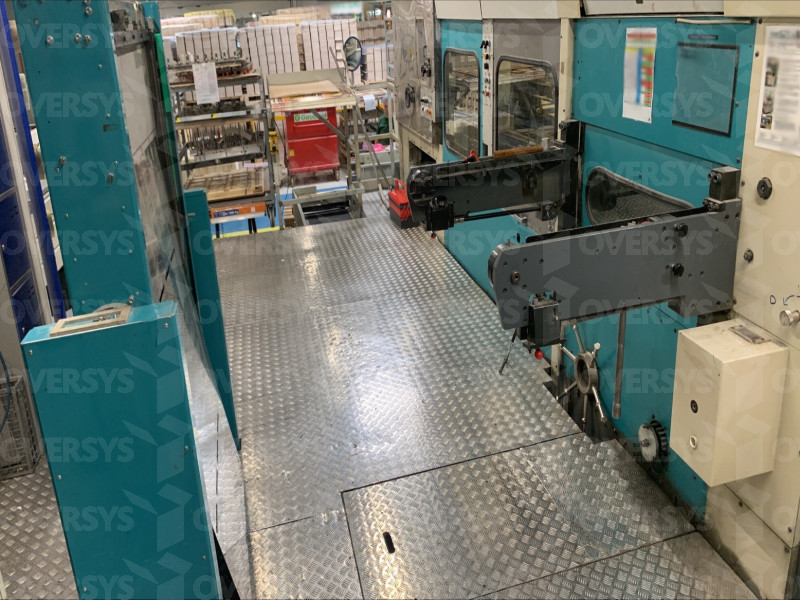

• FEED TABLE

  • Double sheet detection
  • Sheet down-holder (guiding the sheets to the front guides)
  • Upper frame with manual lifting device
  • Upper transport equipment for paper, cardboard

• PLATEN PRESS (needs a complete overhaul)

• OIL CONDITIONER

  • Maintaining correct oil temperature for proper operation

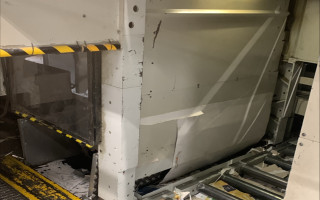

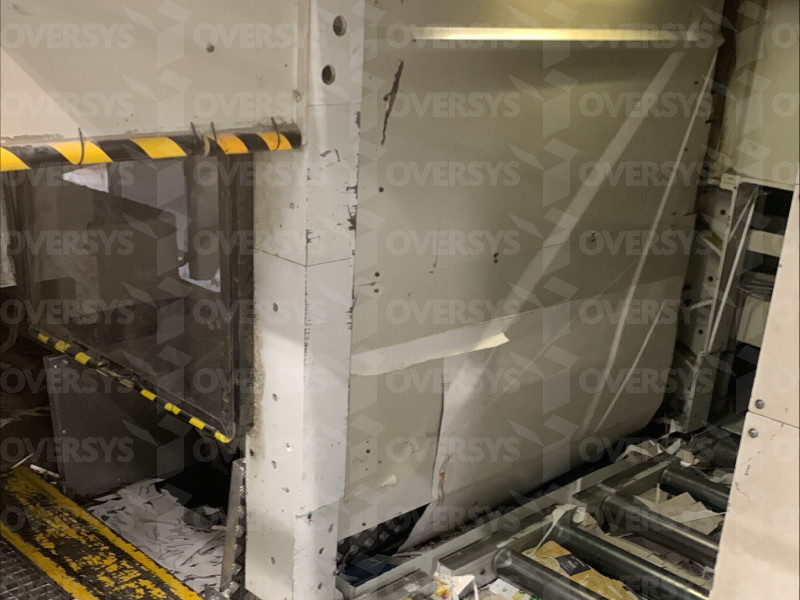

• DELIVERY

  • Automatic ejection of interior and marginal waste
  • Drawer frame that can accommodate two types of ejectors
  • Inserting possible
  • Non-stop delivery

• DC motor retrofit by recent asynchronous motor

• Bobst annual intervention for maintenance +

• Chain train and feed head recently redone

• Quick lock system on top separation and top ejection

Technical Details:

• max. sheet size: 920 mm x 1300 mm / 36" x 51"
• min. sheet size: 450 mm x 580 mm / 18" x 23"
• max. pressure: 500t
• material:
  • paper: min. 80gr/m2
  • cardboard: max. 2000g/m2
  • corrugated board: max. 4mm / 0.16"
