Specialty Folder Gluer
Koenig & Bauer Duran Omega Allpro 185 Specialty Folder Gluer, Year 2021
U74891125
In production
EUROPE ·
2021
The price only available for registered users
Description

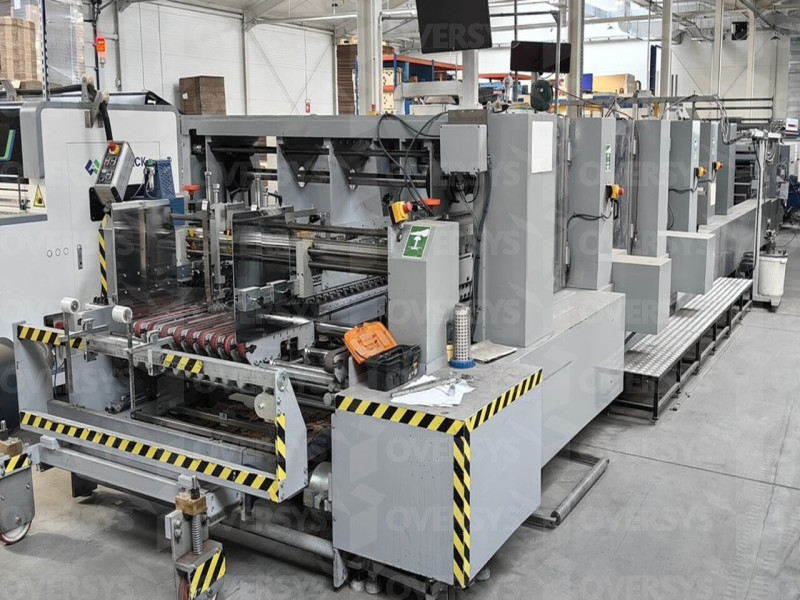

We present this KOENIG & BAUER DURAN OMEGA ALLPRO 185 SPECIALTY FOLDER GLUER, max. format 1500mm x 1850mm / 59.1” x 72.8”, manufactured in 2021.
The machine is in excellent condition, in production and will be available around 5 months after signing the contract.
Machine details:
- HHS Xact Gluing System, 4 gluing guns
- Type of boxes: straight line, crash lock bottom, 1, 3, 4-points (tools for 6 points gluing available, but this type of packaging was never produced)
- Materials: corrugated board E, B, C, EB, BC flutes
- Max. sheet format: 1500mm x 1850mm / 59.1” x 72.8”
- Min. sheet format: 100mm x 350mm / 3.9” x 13.8”
- CE Marking
Machinery configuration:

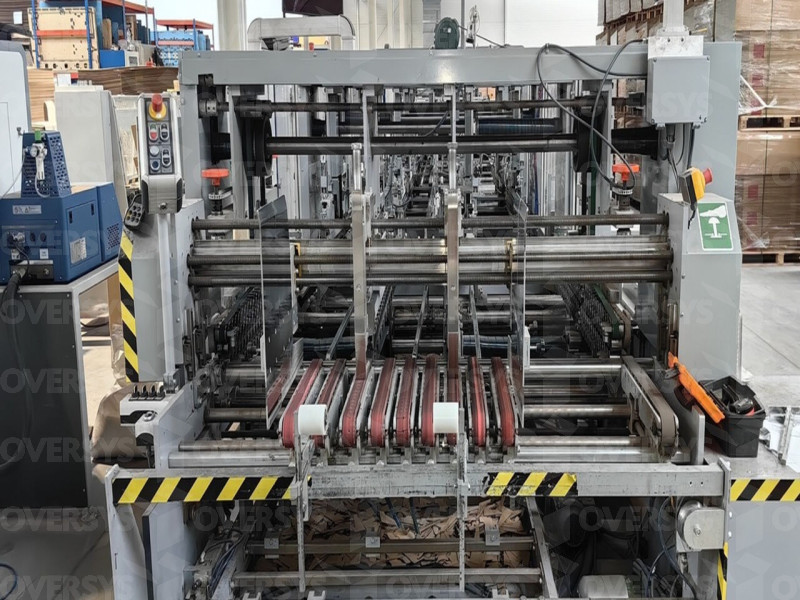

- Feeding Section
- 10 feeding belts (45mm / 1.8”) with modular guides for adjusting belt tension
- adjustable vibrating motor to separate single sheets and prevent double sheets
- adjustable supports for processing longer cartons
- Straightening Section
- setting sheets to the left or right, ensuring correct folding throughout the machine
- motorized upper and lower guides with electric guide travel
- Prefolding Section:
- servo rear-folding system enabling automatic folding of all box types
- touchscreen with access to production parameters enabling saving the orders
- sliding rollers on both sides of the rear folding section for special box types

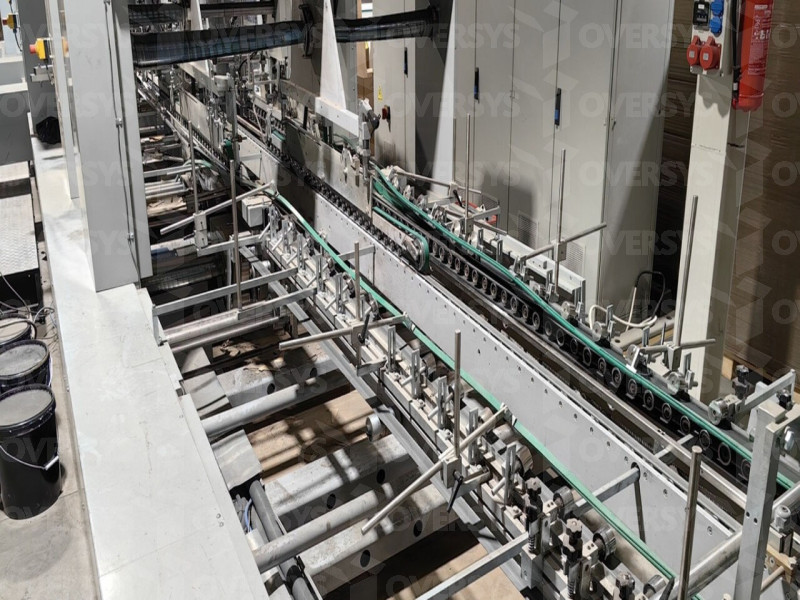

- Folding Section
- extended folding section for smooth package transition
- belts with independently adjustable speed (60mm / 2.4”)
- pneumatic alignment system for "auto bottom" boxes
- Delivery Section
- delivery belts pushing the boxes from both sides
- lateral guidance ensuring better delivery control for irregularly shaped boxes
- Stacking Section
- pneumatic, integrated compression stacker
- independent speed control based on product flow
- adjustable stacker belt pressure
Technical data
| Oversys Reference | U74891125 |
|---|---|
| Format | 1500 mm x 1850 mm |
| Type | SPECIALTY FOLDER GLUER |
| Manufacturer | DURAN MACHINERY-OMEGA |
| Model | OMEGA |
| Year | 2021 |
| Continent | EUROPE |
Dismantling and shipment
Dismantling and Loading
Estimated quotation for dismantling and loading is not provided.
Request a quotation for dimantling and loading.
Transportation and Logistic
Containers estimation for this machine is not provided.
