Flexo Folder Gluer
Dong Fang Edf Fd 618 6 Color Flexo Folder Gluer With Rotary Die Cutter, Overstacking Counter Ejector, Prefeeder And Palletizer
U72820525
Dismantled
EUROPE ·
2017
The price only available for registered users
Description
We present this DONG FANG EDF FD 618 6 COLOR FLEXO FOLDER GLUER WITH ROTARY DIE CUTTER, OVERSTACKING COUNTER EJECTOR, PREFEEDER AND PALLETIZER, manufactured in 2017.
The machine is in excelent condition, dismantled and available immediately
Machinery Details:
- Prefeeder Ducker Robotics Robofeed III with Kawasaki robot - 2018
- Lead Edge Feeder No crush
- 6 Top Printing Units
- vacuum transfer
- chamber blade system
- Matthews quick lock system
- IR dryers
- Indipendent precreaser
- Double Slotter
- Rotary Die Cutter with Serrapid system
- Transfer unit
- Folder Gluer with vacuum folder and Valco Glue Unit
- Overstacking counter ejector

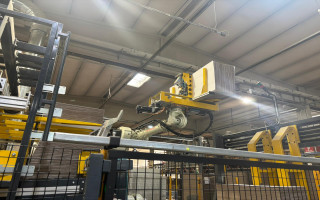

- Palletizer Ducker with 2 Kawasaki robots - 2018
- Servo driven machine
Strapping machine NOT included
Technical Details:
- max. sheet format without Skip Feed: 600MM X 1800MM / 24" x 61"
- max. sheet format with Skip Feed: 800MM X 1800MM / 32" x 61"
- min, sheet format: 200MM X 400MM / 8" x 16"
- thikness: 1-10MM - flutes A,B,C,E,AB,BC,BE
- max mech speed: 25000 boxes/h
Technical data
| Oversys Reference | U72820525 |
|---|---|
| Format | 600 mm x 1800 mm |
| Type | FLEXO FOLDER GLUER |
| Manufacturer | DONG FANG |
| Model | FD 618 |
| Year | 2017 |
| Continent | EUROPE |
