Corrugator
Agnati/Marquip Corrugator, Rhdpg, 2500Mm / 98"
U74921125
In production
EUROPE ·
2000
The price only available for registered users
Description
We present the following AGNATI/MARQUIP CORRUGATOR, RHDPG, flutes E, B and C, working width 2500mm / 98" with modules manufactured between 1988 and 2012.
The machine is in good condition, in production and it will be available in December 2025.
Offers for individual modules will be consider
Machine is composed of:
WET END

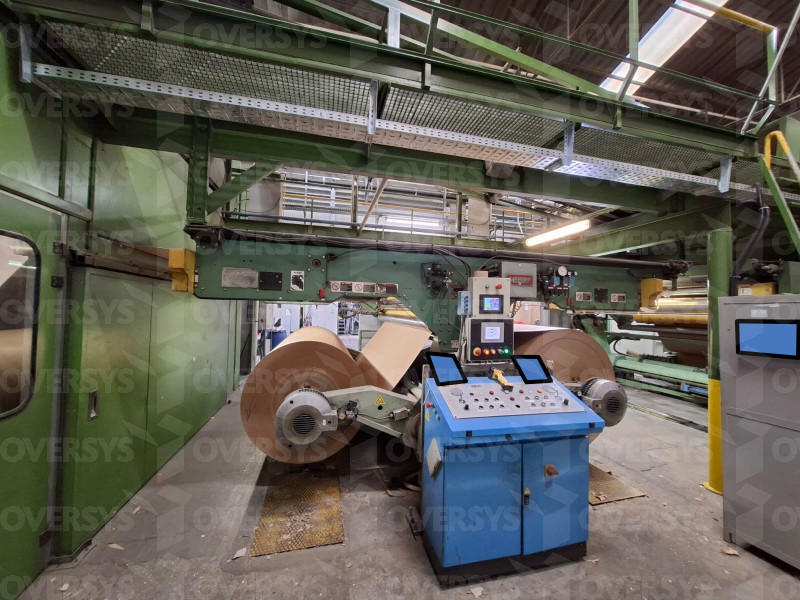

- 5 x Splicers MARQUIP, year: 1998

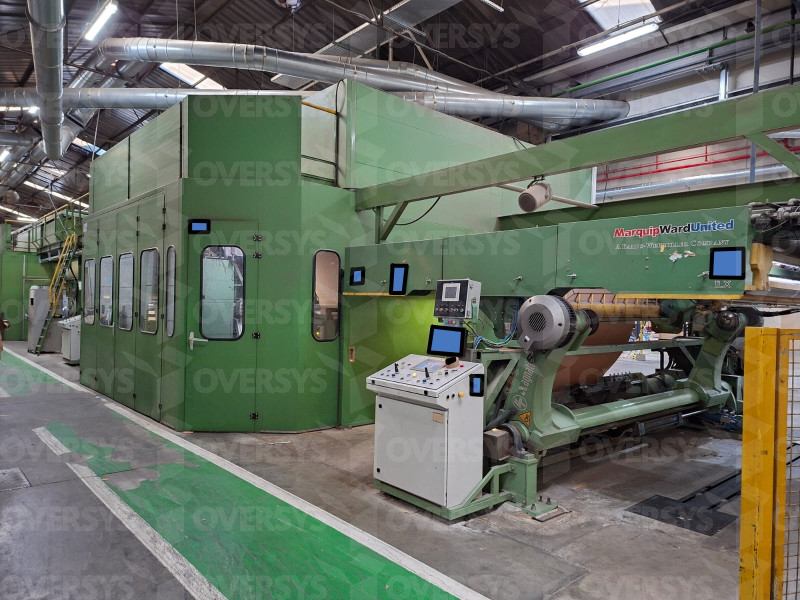

- 2 x Splicers MARQUIP LX, year: 2012

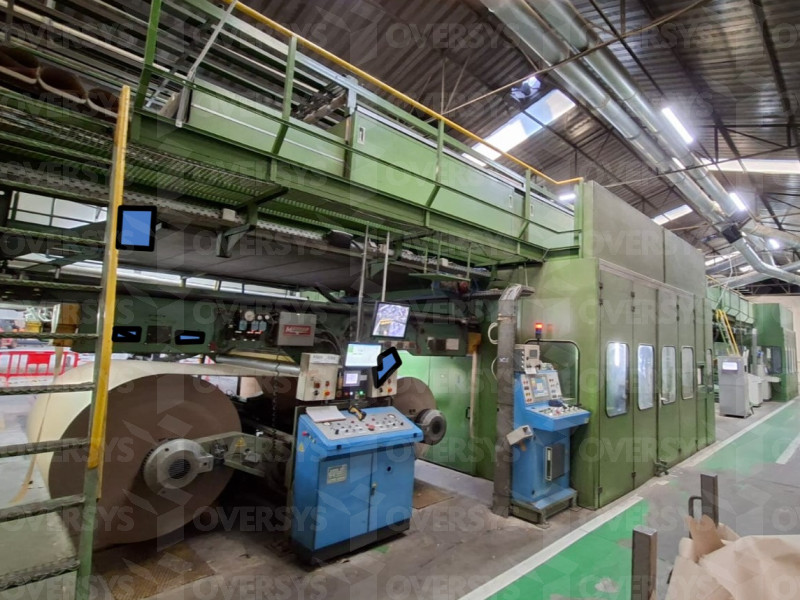

- 3 x Rollstands PETERS 117, year: 1988
- 2 x Rollstands AGNATI PBB2, width: 2464mm / 97"
- 2 x Rollstands AGNATI V-PBM, width: 2800 mm / 71", year: 2012

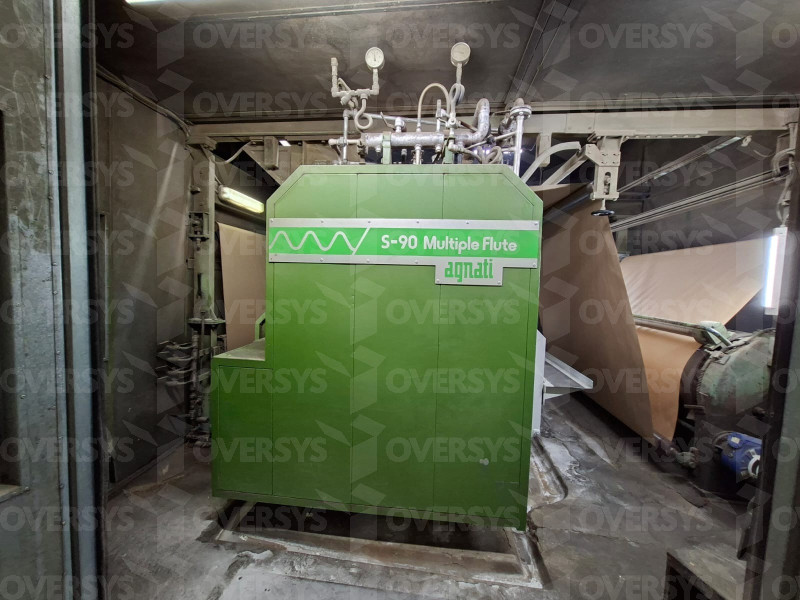

- 2 x Single facers AGNATI S90, width: 2464mm / 97"

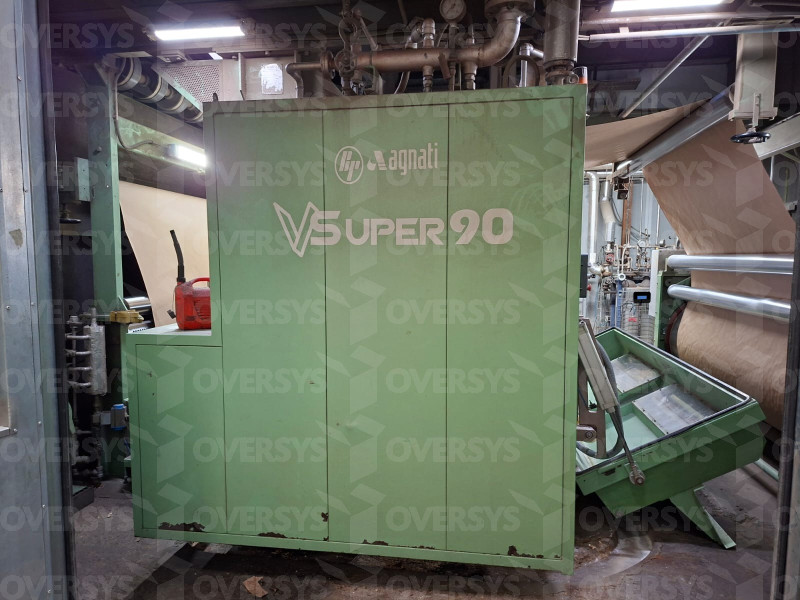

- 1 x Single facer AGNATI VS90, width: 2500 mm, year: 2012 - Máx Speed 350m/min
- 1 x Preheater AGNATI V-PRR, width: 2500 mm, year: 2012
- 2 x Preheaters PETERS, width: 2500 mm
- Preconditioner AGNATI (integrated)
- 1 x Triplex PETERS, year: 1978

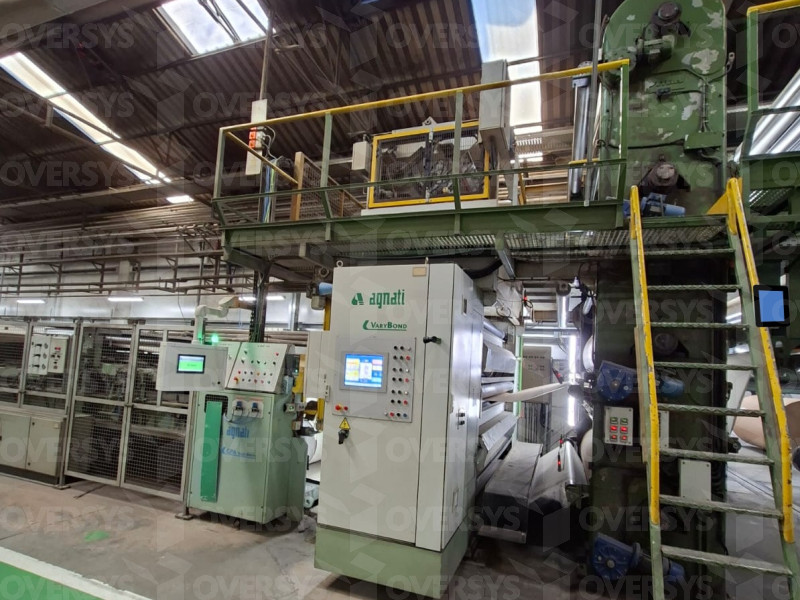

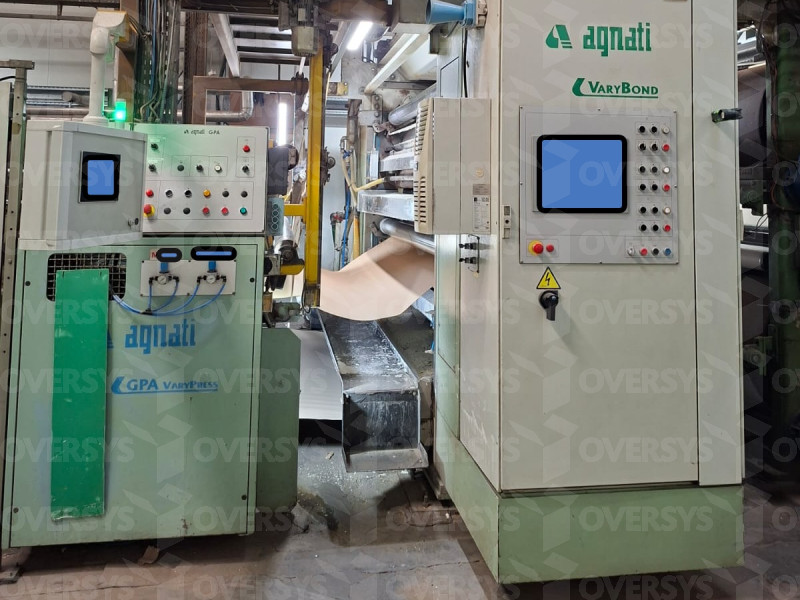

- 1 x Gluing unit AGNATI VARYBOND, width: 2800 mm / 71", year: 2005
- 1 x Gluing unit AGNATI GEARLESS + DSPP, width: 2800 mm / 71", year: 2013
- Bridge

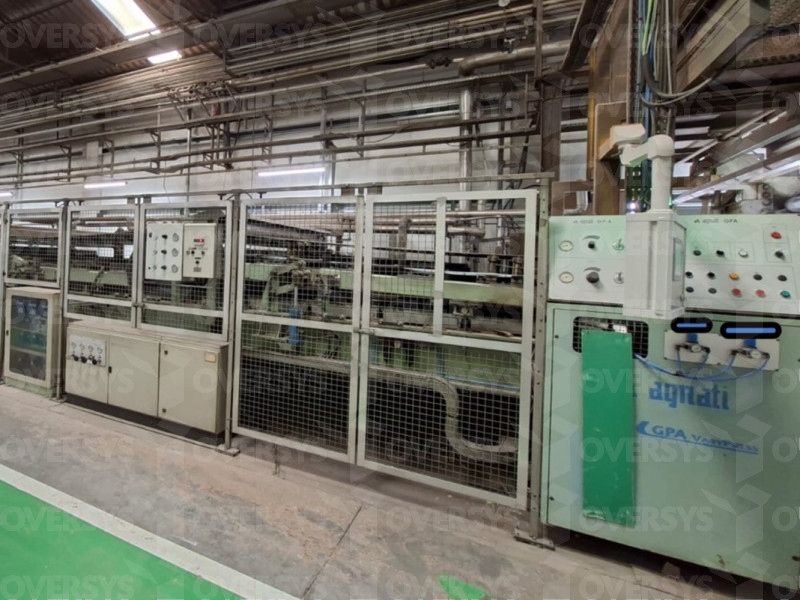

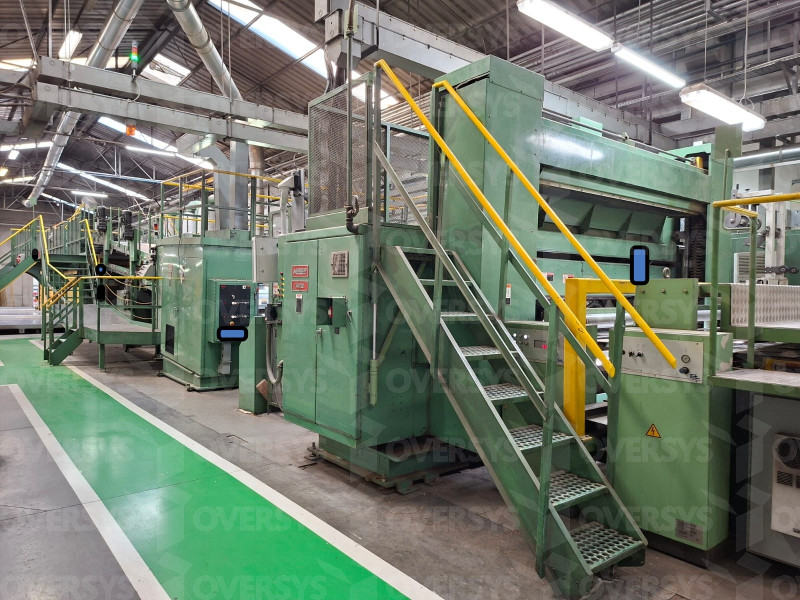

- 1 x Double backer AGNATI GPA 3+2 VARY-PRESS, width: 2800 mm / 71", year: 2003
DRY END

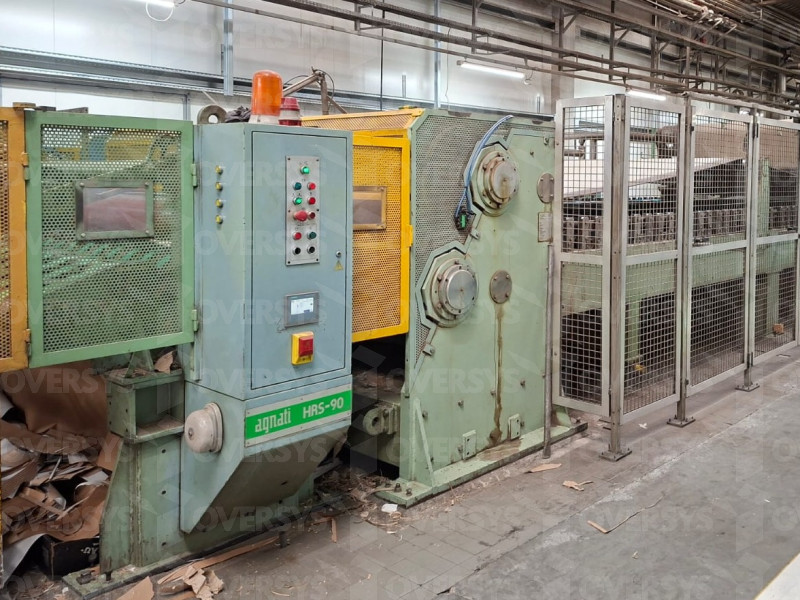

- 1 x Rotary shear AGNATI HRS-90,
- 1 x Vacuum web guide MARQUIP, year: 2002
- 1 x Slitter scorer MARQUIP MODEL 3, year: 1997
SERVICE / AUXILIARY MODULES INCLUDED
- 1 x Corr aligner E&L SLITALIGNER PNW 0320,
- 1 x Web stable E&L WSD 0320,
- 1 x Corr aligner E&L PVM 0325, year: 2020
- 1 x Tension master E&L PFW53121, year: 2020
Stacker and CutOff not included
Technical data
| Oversys Reference | U74921125 |
|---|---|
| Format | 2500 mm |
| Type | CORRUGATOR |
| Manufacturer | SEVERAL BRANDS |
| Model | SEVERAL MODELS |
| Year | 2000 |
| Continent | EUROPE |
Dismantling and shipment
Dismantling and Loading
Estimated quotation for dismantling and loading is not provided.
Request a quotation for dimantling and loading.
Transportation and Logistic
Containers estimation for this machine is not provided.
